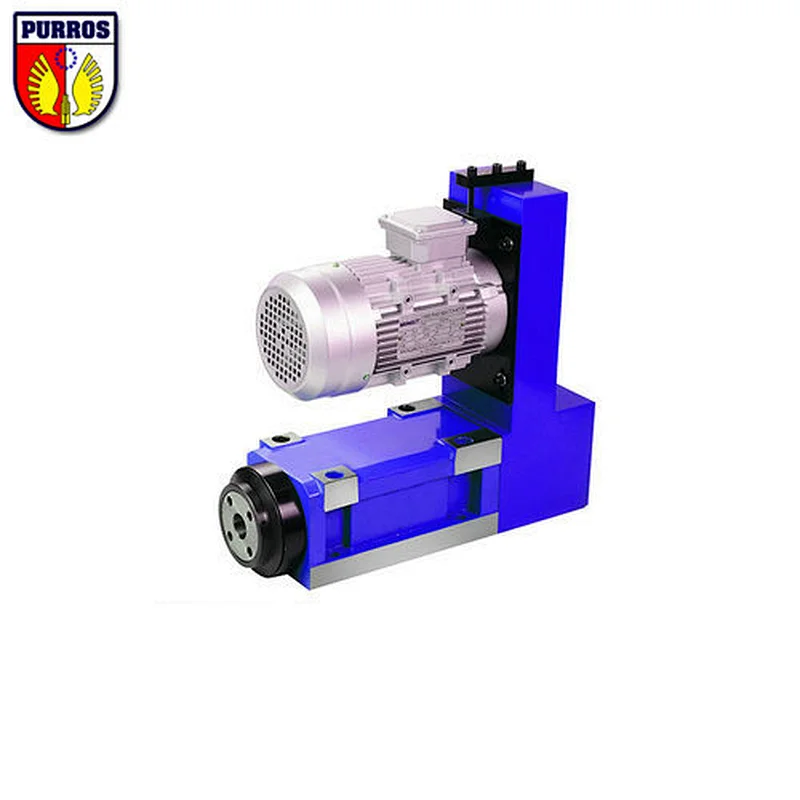

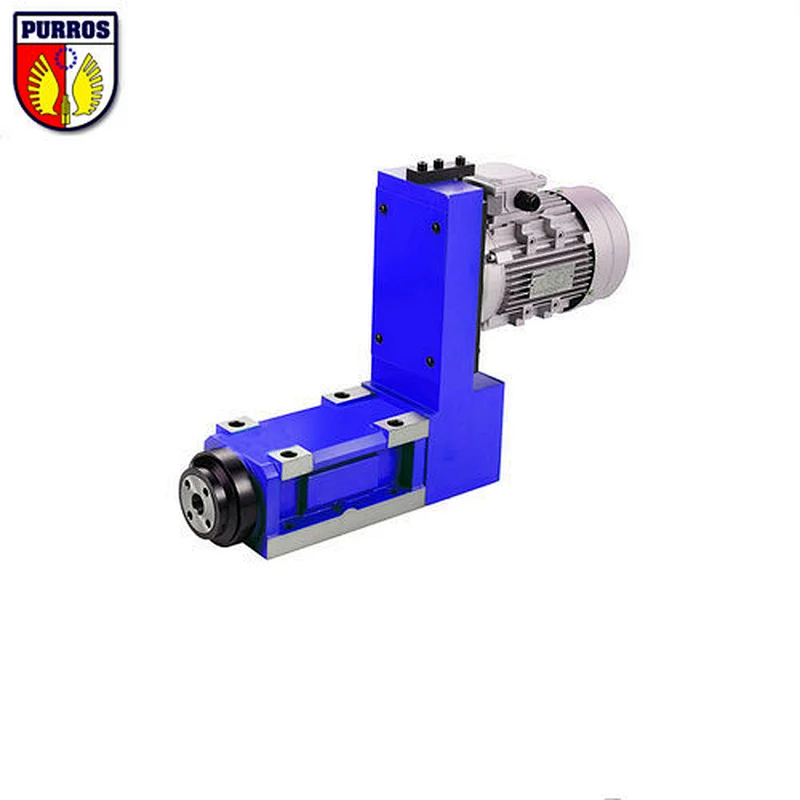

Boring/Milling Spindle Heads with Motor

Boring/Milling Spindle Heads with Motor

  • Model NO.: PR30+Motor
  • Min order:1 piece
  • Accept Min order:No
  • Country of Origin:China
  • Stock Time:20 Days

Every PURROS precision spindles are built with high rigidity and quality housing material. The spindle is made by alloy steel with the process of heat-treatment and assembled with LYC bearings for long life services and high performance.

The accuracy of is restrict under 0.005mm, the machining units are available as a combination of slide table and high-performance spindles for all machining applications such as drilling, reaming, tapping, threading, boring, milling, turning, facing, deburring, chamfering, deep-hole drilling/boring, etc. for all OD and ID machining jobs. This is one of the best implementation machine tools for automation.

ModelPRH30PRS30
SpindleMT3/BT30/ER32
MAX.RPM60002500
Bearing6206*2
7207*3
6206*1
6207*1
30206*1
30207*1
Power of motor1.5KW
Holding CapacityMilling cutter,Bit: Φ2.0-20mm
Milling Cutter Plate: Φ80mm

  • Recommended for combination of sliding table with stroke range from 100mm to 680mm
  • Standard 3-phase AC motor 1.5kW is included
  • Belt driven at a fixed speed and incorporate a timing or Poly-V belt
  • Spindle tapper MT3 or BT30 or ER32
  • Standard motor mounting direction upon specific request
  • Motor protection IP 54
  • Brand Name:PURROS
  • Application:Boring
  • Drive:Motor
