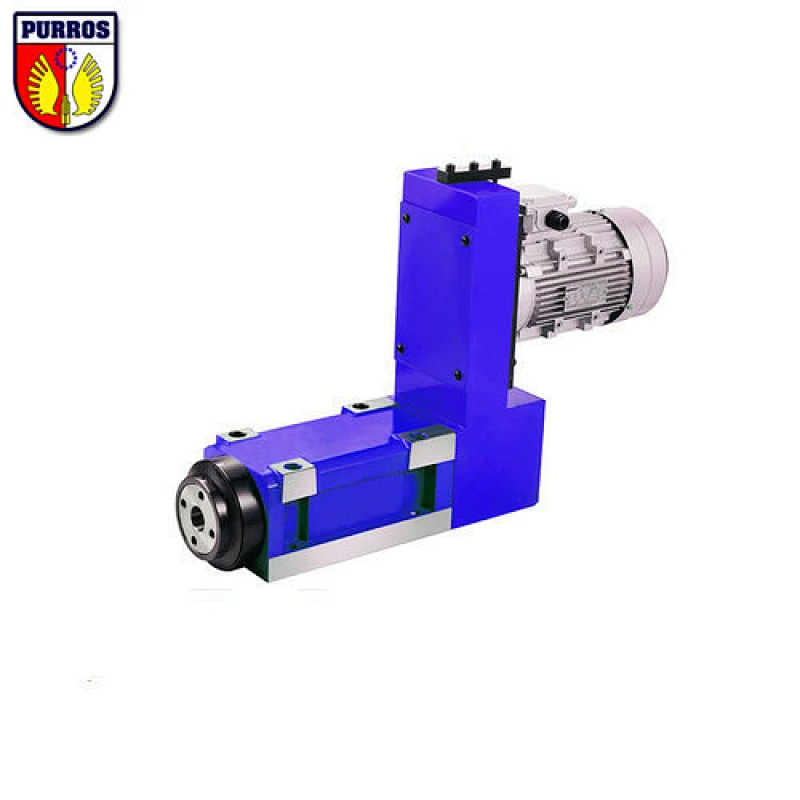

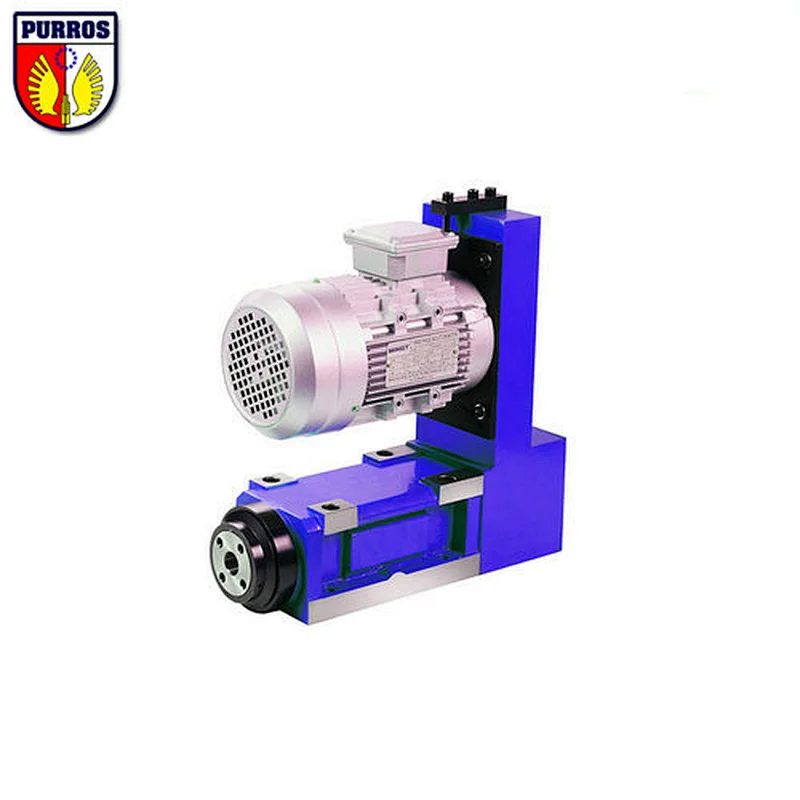

Boring/Milling Spindle Heads with Motor

Boring/Milling Spindle Heads with Motor

  • Model NO.: PR40+Motor
  • Min order:1 piece
  • Accept Min order:Yes
  • Supply Ability:100 piece / Month
  • Country of Origin:CHINA
  • Stock Time:20 Days

Every PURROS precision spindles are built with high rigidity and quality housing material. The spindle is made by alloy steel with the process of heat-treatment and assembled with LYC bearings for long life services and high performance.

The accuracy of is restrict under 0.005mm, the machining units are available as a combination of slide table and high-performance spindles for all machining applications such as drilling, reaming, tapping, threading, boring, milling, turning, facing, deburring, chamfering, deep-hole drilling/boring, etc. for all OD and ID machining jobs. This is one of the best implementation machine tools for automation.

ModelPRH40PRS40
SpindleMT4/BT40/ER40
MAX.RPM50002000
Bearing6208*2
7209*2
6208*1
6209*1
30208*1
30209*1
Power of motor2.2KW
Holding CapacityMilling cutter,Bit: Φ3.0-26mm

Milling Cutter PlateΦ125mm

  • Recommended for combination of sliding table with stroke range from 100mm to680mm
  • Standard 3-phase AC motor 2.2kW is included
  • Belt driven at a fixed speed and incorporate a timing or Poly-V belt
  • Spindle tapper MT4 or BT40 or ER40
  • Standard motor mounting direction upon specific request
  • Motor protection IP 54
  • Brand Name:PURROS
  • Application:Boring
