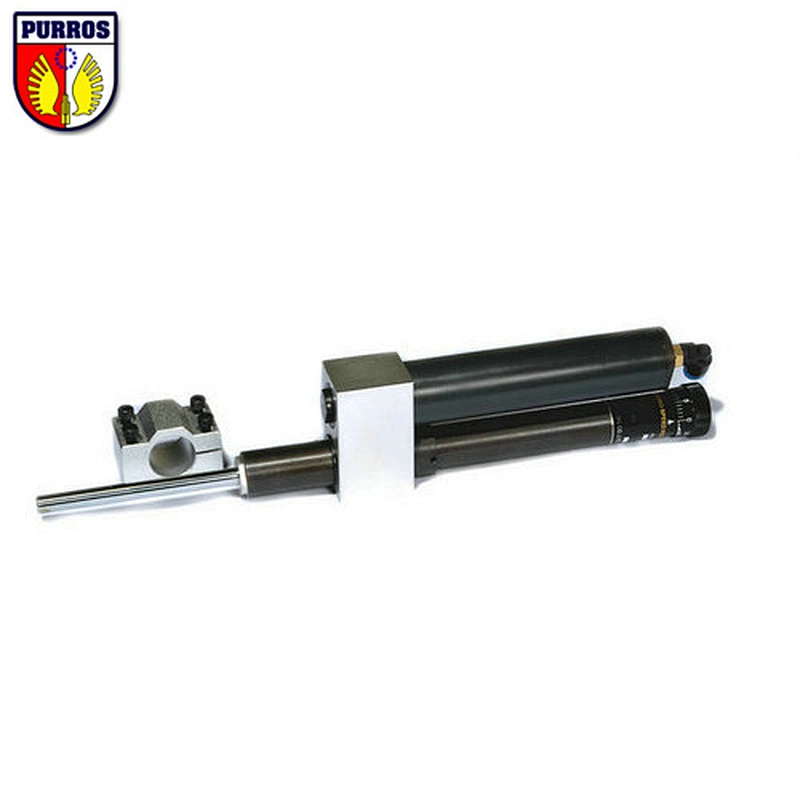

Hydro Speed Regulator (Air Return Type)

Hydro Speed Regulator (Air Return Type)

  • Model NO.: R-24100A
  • Min order:1 piece
  • Accept Min order:Yes
  • Supply Ability:1000 piece / Week
  • Country of Origin:CHINA
  • Stock Time:3 Days

Air return regulators serve the same function as the spring return type in that they control the forward speed of the drill. However, the air type requires an air signal at the end of each drilling cycle to return the regulator to its original position. Also, these regulators are required for peck feed drilling as they are capable of holding the drilling depth at the end of each peck feed motion.Air return regulators serve the same function as the spring return type in that they control the forward speed of the drill. However, the air type requires an air signal at the end of each drilling cycle to return the regulator to its original position. Also, these regulators are required for peck feed drilling as they are capable of holding the drilling depth at the end of each peck feed motion.

Even if remove the load of piston rod of R-A type hydraulic damper, the piston rod still can stay at original position, only provide compressed air piston rod can return, a multiple setp feed control can be carried out.Even if remove the load of piston rod of R-A type hydraulic damper, the piston rod still can stay at original position, only provide compressed air piston rod can return, a multiple setp feed control can be carried out.


SPECIFICATIONS

Model

Max stroke

mm

Load range

N

Adjusting range of speed of all kinds of driving forces.

Mm/sec

Impact energy permitted

J

Weight(Basic body)

Kg

R-2440A

40

120-1,500

F=200N     0.3-5

F=1,000N  0.5-25

F=1,500N  0.5-50

2.3

1.12

R-2460A

60

1.13

R-2480A

80

1.47

R-24100A

100

1.48

R-24150A

150

2.04

R-3180A

80

500-3,000

F=500N     0.3-12

F=2,300N  0.5-25

F=3,.000N  0.6-50

3.5

2.2

R-31130A

130

2.8

R-31180A

180

3.3

Purros Machinery also have other models (Maximum Stroke:40-180mm, Load Range:200-3000n, Withstand Impact Energy:2.3-3.5j)

Size mark
Model

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

R-2440A

40

28

241

20

32

43

24

127

25

9

38

52

34

17

7

67

R-2460A

60

261

R-2480A

80

333

180

R-24100A

100

353

R-24150A

150

 373

R-3180A

80

36

361

26

42

31

31

180

90

12

44

60

36

21

10

74

R-31130A

130

461

235

33

R-31180A

180

561

255

63

  • Standard or Nonstandard:Standard
  • Body Material:Steel
  • Maximum Stroke:100MM
  • Shaft Diameter:24MM
  • Model Number:17A603
  • Brand Name:JARA
