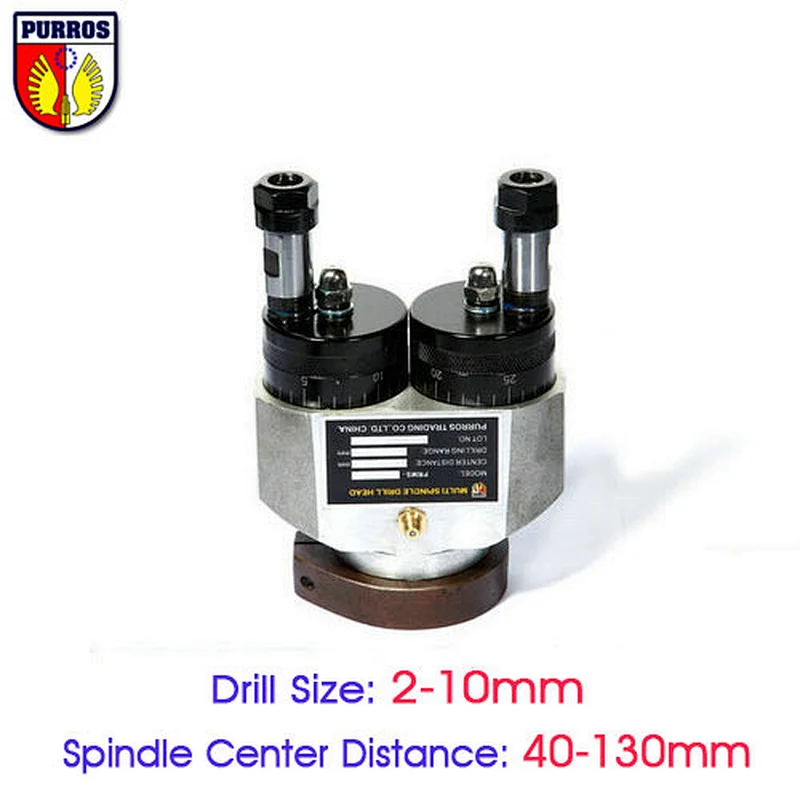

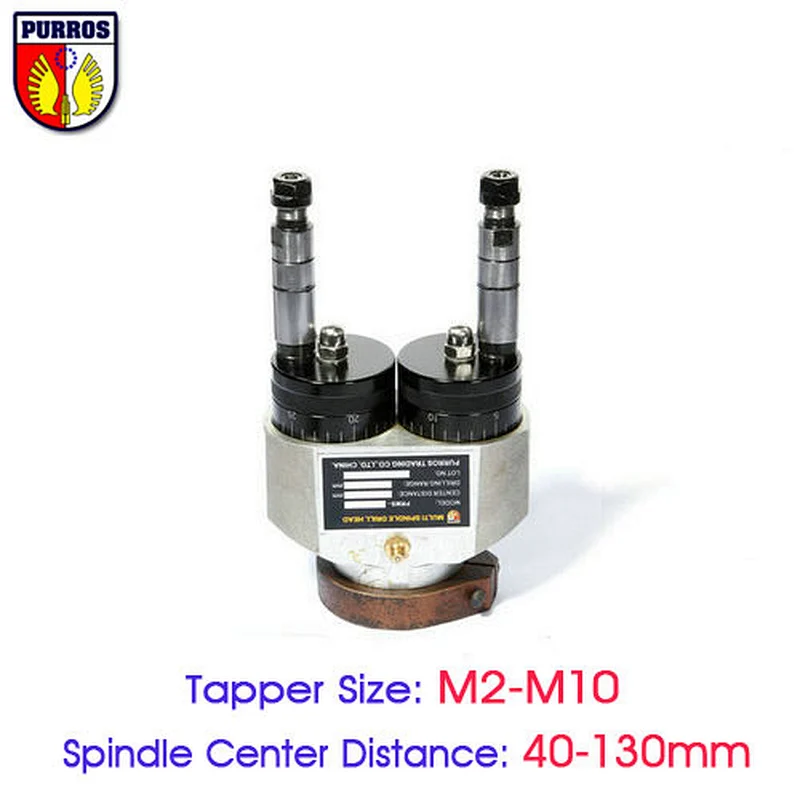

Adjustable Two Spindle Heads

Adjustable Two Spindle Heads

  • Model NO.: PRMS-240
  • Min order:1 piece
  • Accept Min order:Yes
  • Country of Origin:CHINA
  • Stock Time:20 Days

Purros Adjustable Multi-Spindle Heads are suitable for equally spaced hole patterns only. They are best suited for low volume work where the requirements change from time to time. They may be adapted to almost any machine. All the spindles operate in the same rotation that is also reversible.


SPECIFICATIONS

Model

Ratio of Gear

Drilling

Tapping

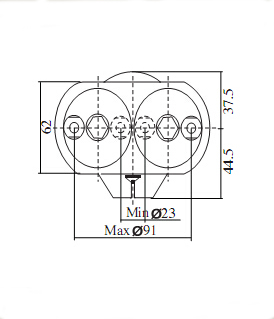

Min for 2 spindle

Max for 2 spindle

PRMS-223

1

Φ2-Φ7.5

M2-M8

Φ23mm

Φ91mm

PRMS-228

1

Φ2-Φ10

M2-M10

Φ28mm

Φ120mm

PRMS-240

1

Φ2-Φ10

M2-M10

Φ40mm

Φ130mm

PRMS-260

1

Φ2-Φ10

M2-M10

Φ60mm

Φ152mm

Inquiry Inputs from customer to understand requirement clearly:

  • Material to be machined
  • Size of holes
  • Number of holes
  • Operation to be performed
  • Center distance between holes
  • Fixed center distance or adjustable Center distance
  • Drawing/sketch of Hole pattern
  • Spindle out put rpm
  • Motor HP of Machine on which head to be mounted

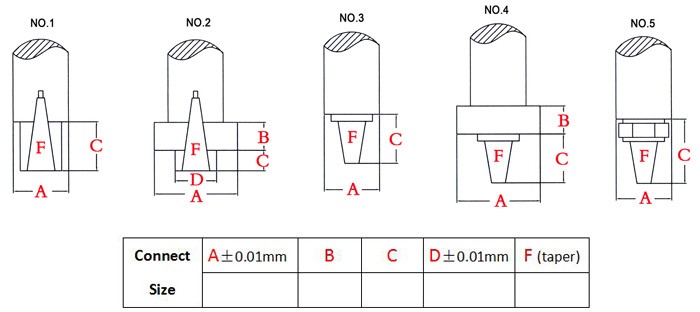

Connect Size

A: Spindle sleeve diameter
B: Spindle sleeve exposed length
C: Spindle rotating part exposed length
D: Spindle rotating part diameter
F: Connection type

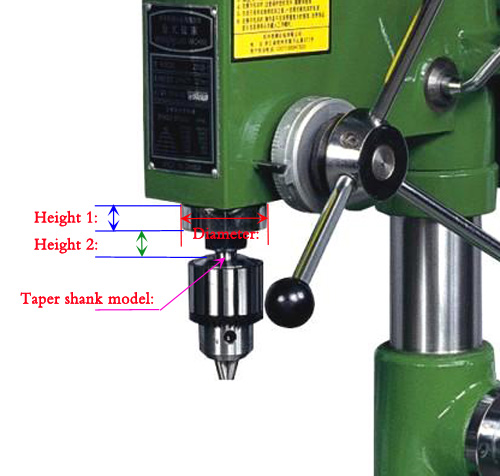

Bench Machine Connect Size

Please send Connect size(Diameter,Height 1,Height 2,Taper shank model) and bench drilling machine & tapping machine images to our email
