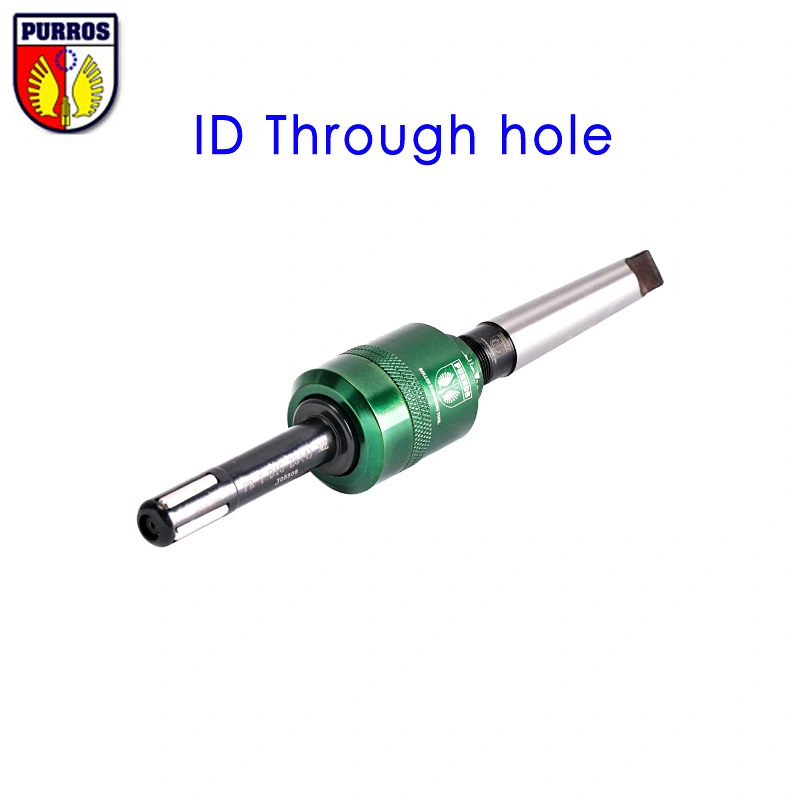

Roller Burnishing Tool for ID Through Hole

Roller Burnishing Tool for ID Through Hole

  • Model NO.: PR-T4.0-220.8
  • Min order:1 piece
  • Accept Min order:Yes
  • Supply Ability:500 piece / Week
  • Country of Origin:CHINA
  • Stock Time:20 Days

Features & Benefits:
Accurate sizing
Fast cycle time
Eliminate secondary operations

Metallurgical improvements:
Work hardening
Resistant to fatigue failure
Corrosion resistance

Specifications:
Can be run on almost any machine tool either the tool or work piece can rotate.
Flood coolant is required.

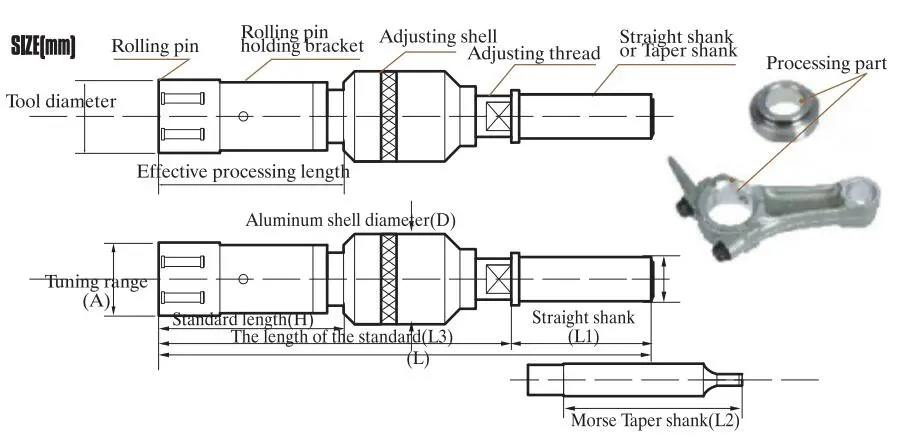

ID Through Roller Burnishing Tool Size

ID Through Roller Burnishing Tool Specifications

 Roller diameterTuning range
(A)
Needle roller diameter
and grain number
Aluminum shell
diameter(D)
Standard length
(H)
Effective
standard long
Processing
length limit
The length of the
standard(L3)
Optional
handle model
PR-T4.0-4.8±0.11.5*10(3)GA1Φ36453580105Straight Φ12
Morse 2#
Morse 3#
PR-T4.9-5.81.5*10(4)5545115
PR-T5.9-8.8-0.4~+0.152*10(4)130
PR-T8.9-11.8-0.1~+0.23*15(4)150
PR-T11.9-14.8-0.1~+0.254*15(4)GA2Φ406555180125Straight Φ12
Straight Φ16
Morse 2#
Morse 3#
PR-T14.9-19.8-0.1~+0.35*20(4)200
PR-T19.9-25.35*20(6)250
PR-T25.4-31.88065350135
PR-T31.9-39.85*20(8)GA3Φ46500
PR-T39.9-47.8-0.1~+0.47*20(8)1000
PR-T47.9-54.8150130150
PR-T54.9-69.8-0.1~+0.510*30(8)GA4Φ60.5Straight Φ16
Straight Φ20
Morse 2#
Morse 3#
PR-T69.9-85.810*30(10)
10*30(12)
PR-T85.9-119.8
PR-T119.9-149.810*30(14)GA5Φ70.5
PR-T149.9-179.810*30(16)
PR-T179.9-199.8-0.1~+0.7GA6Φ120190160190Morse 4#
Morse 5#
PR-T199.9-220.8

10*30(18)

Straight shank
(L1)
Type x LengthMorse Taper shank
(L2)
Type x LengthTool Length
Straight shankMorse shank
Φ12x322#x78.5L1+L3L2+L3
Φ16x323#x98
Φ20x504#x123
Φ25x505#x155.5
Φ32x506#x217.5
Φ40x50

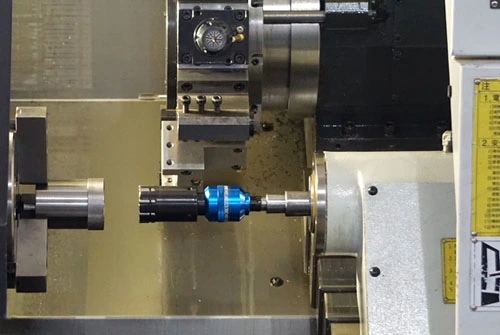

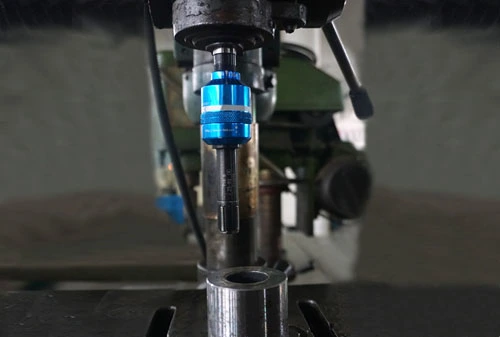

ID Through Roller Burnishing Tool Application

  • Brand Name:PURROS
  • Model Number:CF-38
  • Power Source:Electricity
  • Type:Other
  • Variable Speed:Yes
  • Disc Diameter:Other
  • Disc(Wheel) Type:Other
  • Dimensions:4.0-220.8
