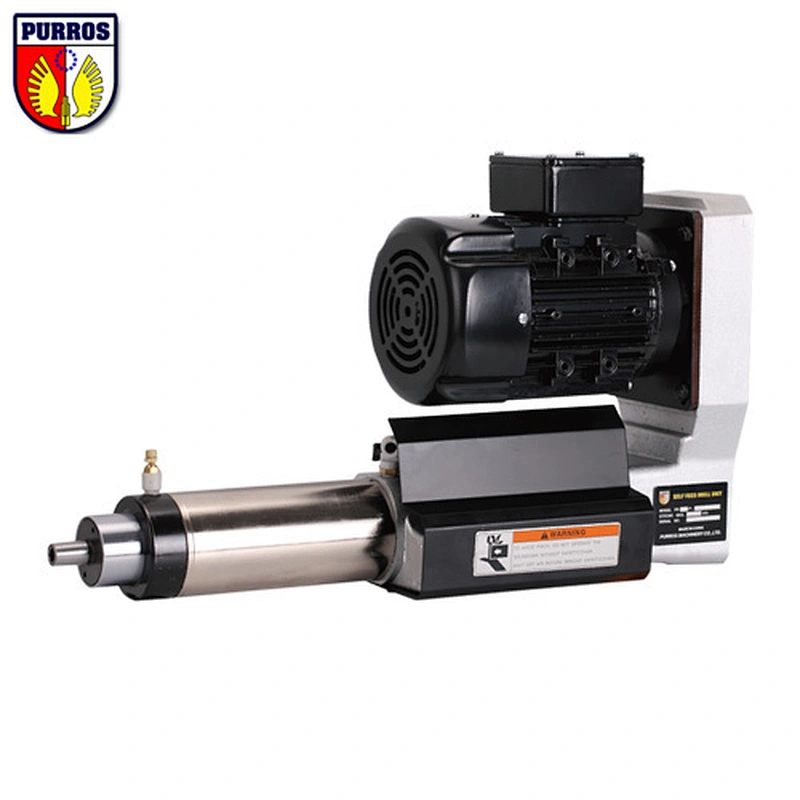

Self Feeding Drill Unit

Self Feeding Drill Unit

  • Model NO.: PR32P
  • Min order:1 piece
  • Accept Min order:Yes
  • Supply Ability:100 piece / Week
  • Country of Origin:CHINA
  • Stock Time:20 Days

Model
number

No-Load

rotational speed

Chucking
capacity
Drilling capacityStrokeMotorThrust

Air consumption

Weight
50 HzAluminumCast ironSteelTotal
stroke
Cutting
stroke
OutputPoles
number
min-1mmmmmmmmkwPNL/Strokekg
PR32P-13757500

3

Non-key

locking

type

3211000-1000.37/0.55212503-520
PR32P-1375L15023
PR32P-1355550042.51.510020
PR32P-1355L15023
PR32P-134040006.55.54210020
PR32P-1340L15023
PR32P-1330300075310020
PR32P-1330L15023
PR32P-13252500137.55.53.5100420
PR32P-1325L15023
PR32P-1318180086510020
PR32P-1318L15023
PR32P-1313130097.5610020
PR32P-1313L15023
PR32P-130660012.510910020
PR32P-1306L15023

Characteristic

1. High-precision

Core technology of Electro Pneumatic Drilling Units is played very well, which completely strengthened the versatility of the product and thus made the high precision of Drilling Units reflected extremely.

2. High rigidity

Axial rail structure is used, which greatly improved the overall rigidity and fully guaranteed the stability of the hole machining.

3. High performance

A unique dual sealing structure and round body that is easy and convenient to be installed are available at the end of spindle, which can meet variety of holes machining requirement.

Products can be equipped with Self Feeding Drill Unit

1. Hydraulic damper (PURROS® Hydro Speed Regulator)

Speed can be adjusted arbitrarily from lower to higher by a hydraulic feeding speed control device.

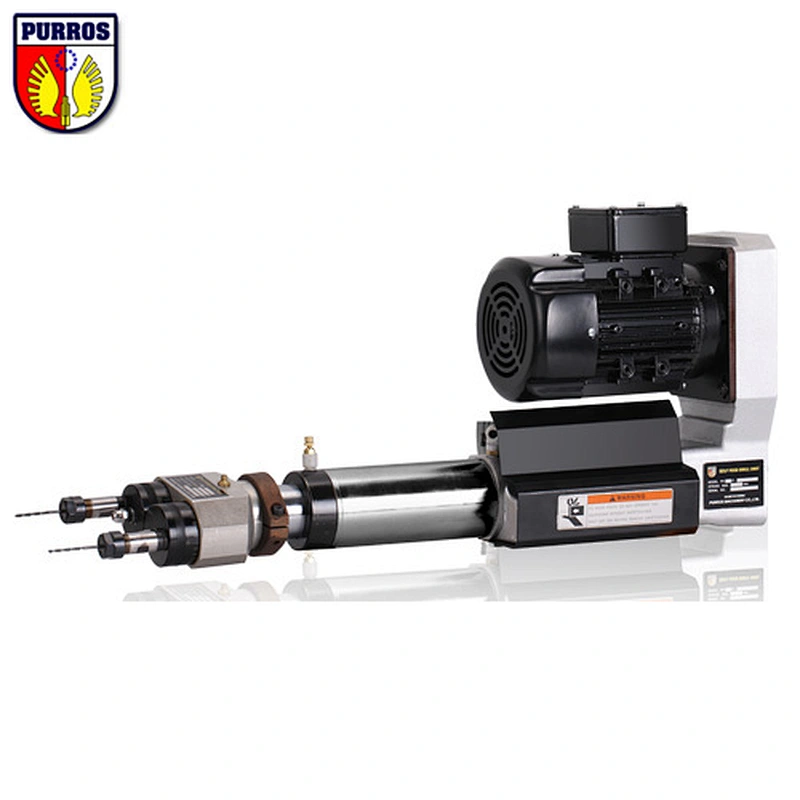

2. Multi-axis machining head (PURROS® Multiple Spindle Heads)
Multi-axis machining head can be amounted, which can achieve high efficiency drilling and meet different requirements of machining axes and axis spacing. Extensive multi-axis machining head sizes are available in PURROS®.

3. Desktop support (PURROS® Universal Bracket)
Such desktop support is suitable for any machining directions, which can fix the Drilling Units angle freely.
