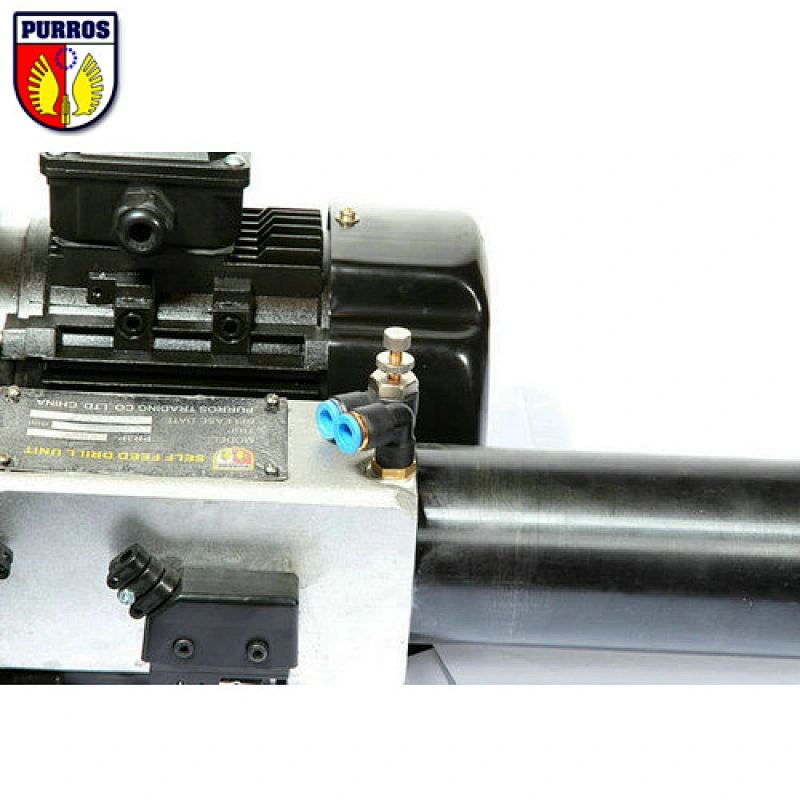

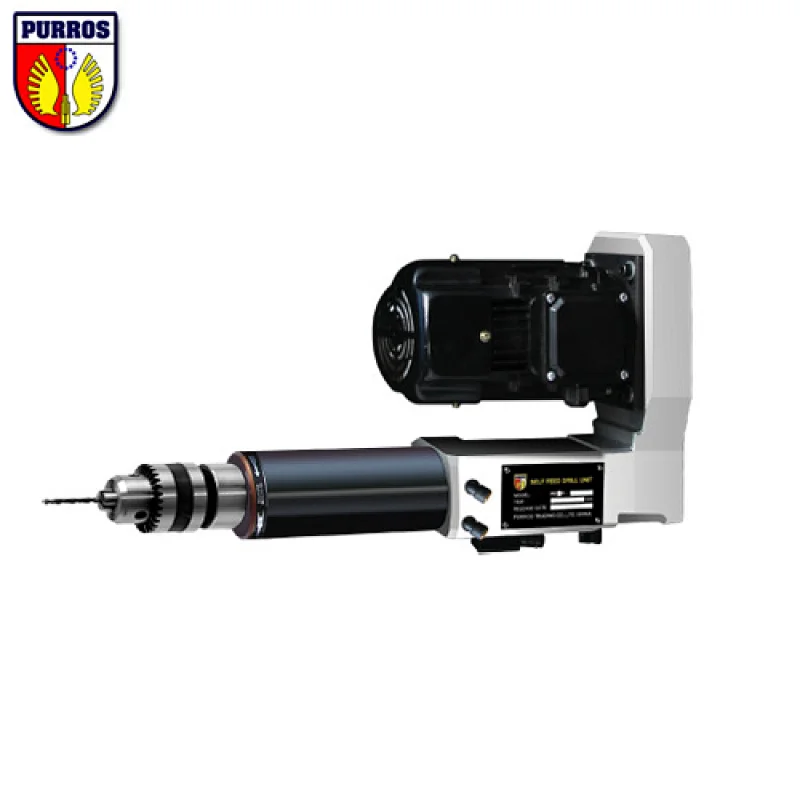

Self Feeding Drill Unit

Self Feeding Drill Unit

  • Model NO.: PR3P
  • Min order:1 piece
  • Accept Min order:Yes
  • Supply Ability:100 piece / Month
  • Country of Origin:CHINA
  • Stock Time:20 Days

Model
number

No-Load rotational speed

Chucking
capacity

Drilling capacity

Stroke

Motor

Thrust

Weight

50 Hz

60 Hz

Aluminum

Cast iron

Steel

Total
stroke

Cutting
stroke

Output

Poles
number

min-1

mm

mm

mm

mm

kw

P

N

kg

PR3P-3075

7500

9000

3

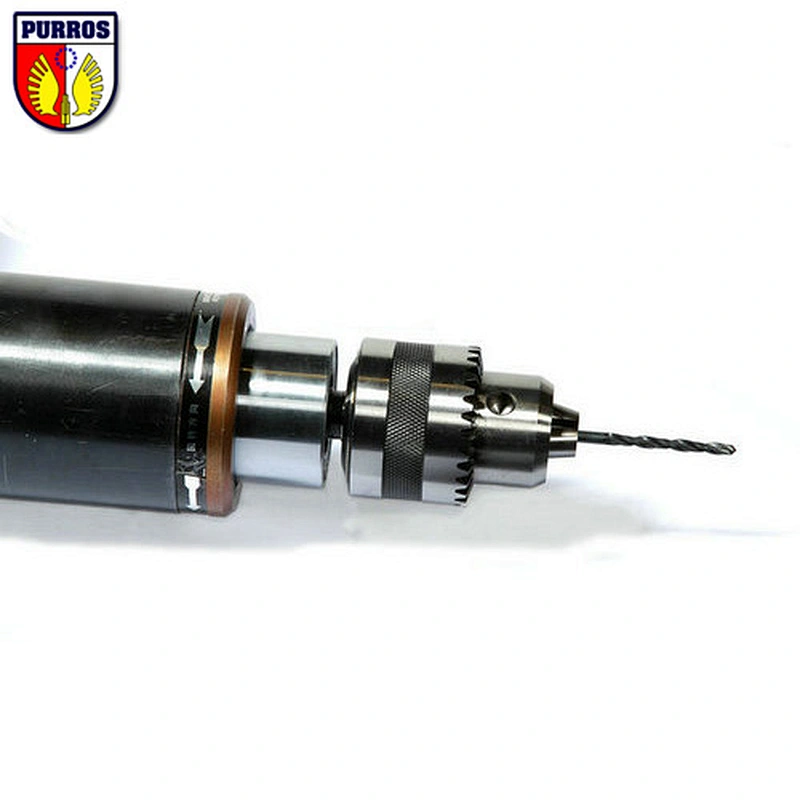

(Keyless

drill chuck)

3.3

1.5

1.5

80

0-60

0.55

2

1200

21

PR3P-3075L

12024

PR3P-3060

6000

7200

4.2

1.6

1.6

8021

PR3P-3060L

12024

PR3P-6049

4900

5900

6.5

5.5

2.2

2.2

8021

PR3P-6049L

12024

PR3P-6034

3400

4100

6.5

3.2

3.2

8021

PR3P-6034L

12024

PR3P-1326

2600

3200

13

8

3.8

3.8

8021

PR3P-1326L

12024

PR3P-1318

1800

2200

9

5.5

4.5

80

0.75

21

PR3P-1318L

12024

PR3P-1314

1400

1700

10

6.5

6

80421

PR3P-1314L

12024

PR3P-1310

1000

1200

10.5

8.5

7.5

8021

PR3P-1310L

12024

PR3P-1307

700

800

12

9.5

8.5

8021

PR3P-1307L

12024

NOTE:
1. The selection of models should be based on the shape of the work, material, cutting characteristics, diameter and material of tools, rotation speed (cutting speed), etc.
2. The drilling capacity displayed in the above table is based on values representing a drilling depth of two times the diameter of the drill.
3. The standard attachment for the hydro speed regulator is RB-2430. Please specify an optional Hydro Speed Regulator if required. (Optional Hydro Speed Regulator Models: RB-2460, R-2440A, R-2460A)
4. Maximum weight of the attachment that can be mounted when machining downwards is 12 kg.

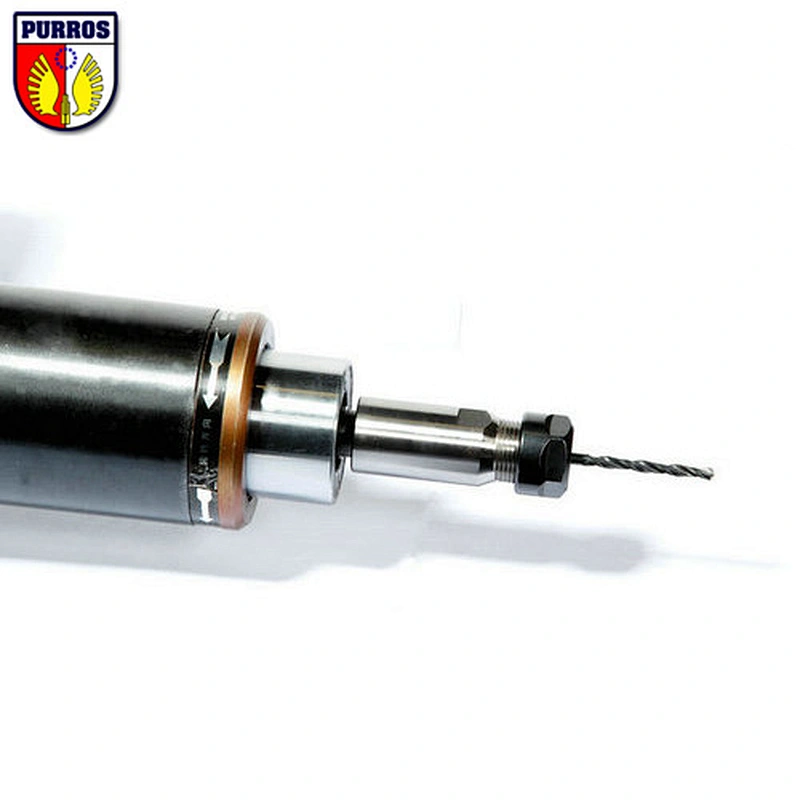

5. Make sure to use a collet chuck or spindle nose when the hardness of carbide drills and tool shanks is higher than that of general HSS (high-speed steel) drills.

Characteristic

1. High-precision

Core technology of Electro Pneumatic Drilling Units is played very well, which completely strengthened the versatility of the product and thus made the high precision of Drilling Units reflected extremely.

2. High rigidity

Axial rail structure is used, which greatly improved the overall rigidity and fully guaranteed the stability of the hole machining.

3. High performance

A unique dual sealing structure and round body that is easy and convenient to be installed are available at the end of spindle, which can meet variety of holes machining requirement.

Products can be equipped with Self Feeding Drill Unit

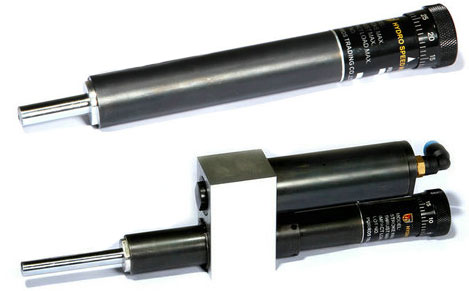

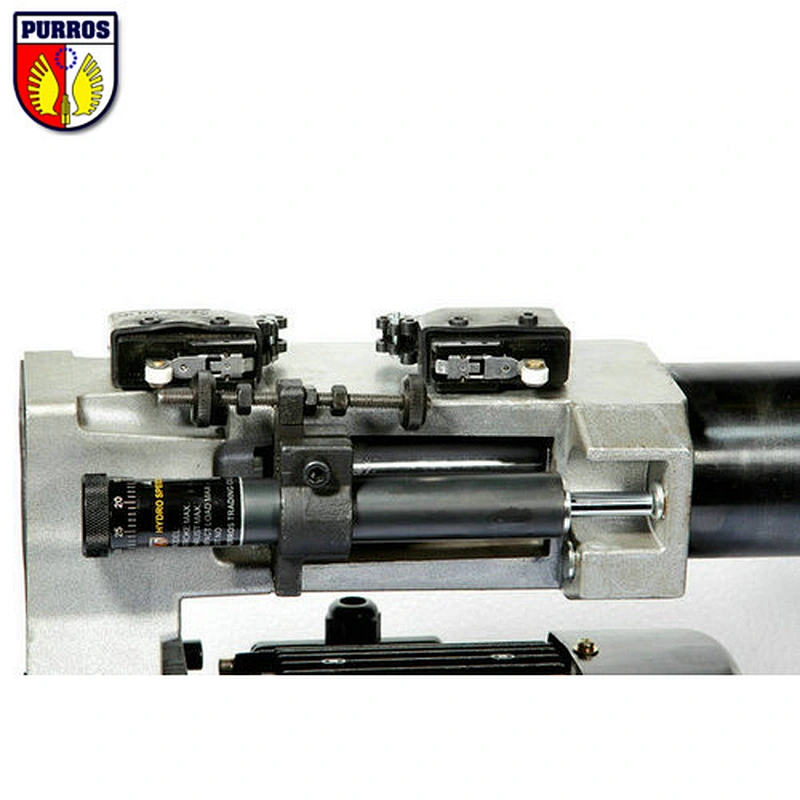

1. Hydraulic damper (PURROS® Hydro Speed Regulator)

Speed can be adjusted arbitrarily from lower to higher by a hydraulic feeding speed control device.

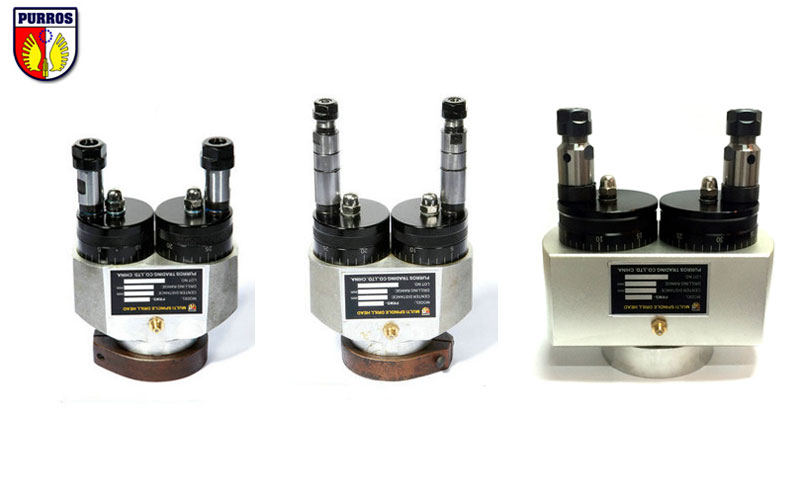

2. Multi-axis machining head (PURROS® Multiple Spindle Heads)
Multi-axis machining head can be amounted, which can achieve high efficiency drilling and meet different requirements of machining axes and axis spacing. Extensive multi-axis machining head sizes are available in PURROS®.

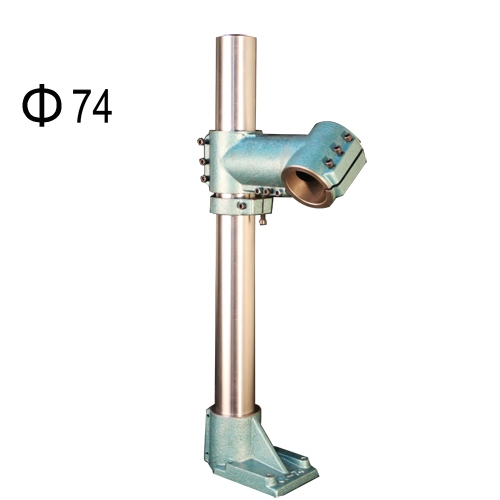

3. Desktop support (PURROS® Universal Bracket)
Such desktop support is suitable for any machining directions, which can fix the Drilling Units angle freely.
