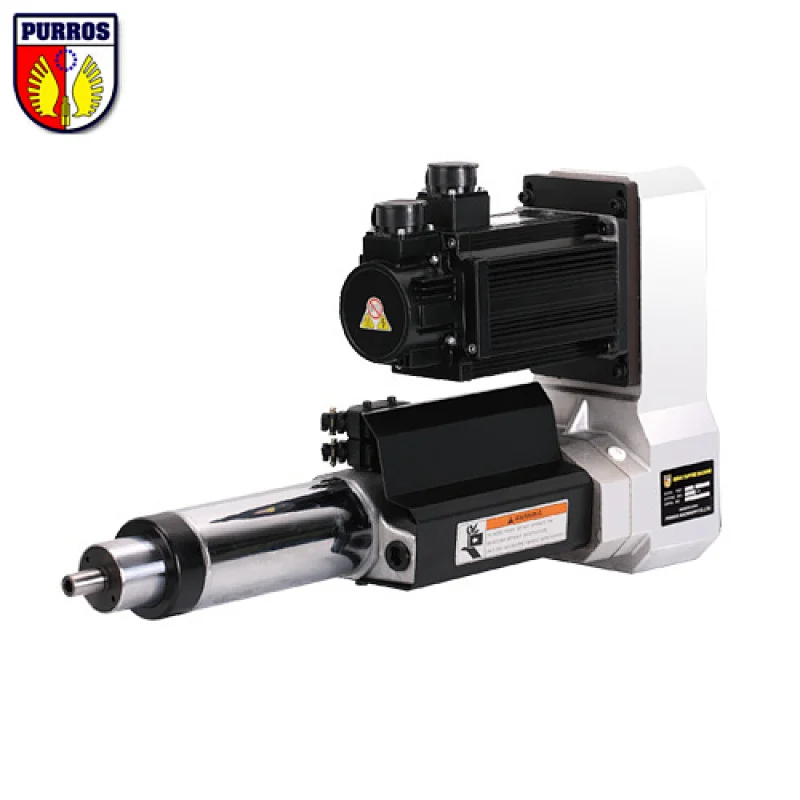

PRST5 Servo Feed Tapping Units

PRST5 Servo Feed Tapping Units

  • Model NO.: PRST5
  • Min order:1 piece
  • Accept Min order:Yes
  • Supply Ability:100 piece / Month
  • Country of Origin:CHINA
  • Stock Time:20 Days

Parameters
TYPE

Rotating speed

Tapping capacity

Travel adjustment range

Servo motor
specifications

The screw thread

Fast Forward

Cutting

Aluminum

Steel

Full stroke

Fast forward
to the trip

Pitch
feed stroke

Metric

Teeth

number

min-1

PRST3-H108

MAX.
3370

Adjustment
range
1-1999

M10

M8

MAX.
70

MAX.
70

MAX.
50

1.8KW/220V
Three-phase/single-phase

The rated current value 8.0A

0.3
0.5
0.7
0.8
1
1.25
1.5
1.75

40
36
28
26
20
18
16
14

M8

M6

PRST3-L108

MAX.
1600

Adjustment range
1-960

M12

M12

M12

M10

PRST5-H316

MAX.
2200

Adjustment
range
1-1980

M14

M8

MAX.
80

MAX.
80

MAX.
50

2.3KW/220V
Three-phase/single-phase

The rated current value 9.5A

0.5
0.7
0.8
1.0
1.25
1.5
1.75
2.0
2.5

40
36
28
24
18
16
14
12
10

M12

M8

PRST5-L316

MAX.
875

Adjustment range
1-780

M22

M16

M18

M12

Products can be equipped with Servo Feed Tapping Units

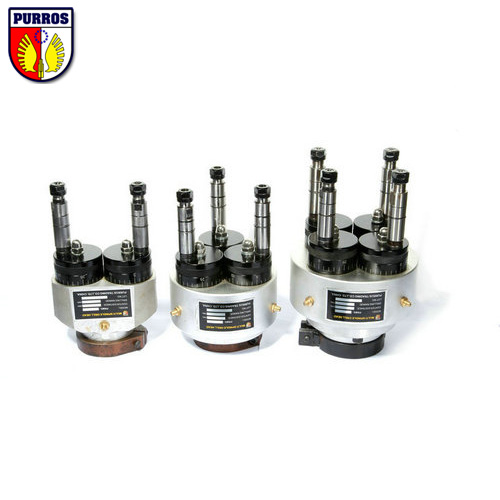

1. Multi-axis machining head (PURROS® Multiple Spindle Heads)
Multi-axis machining head can be amounted, which can achieve high efficiency drilling and meet different requirements of machining axes and axis spacing. Extensive multi-axis machining head sizes are available in PURROS®.

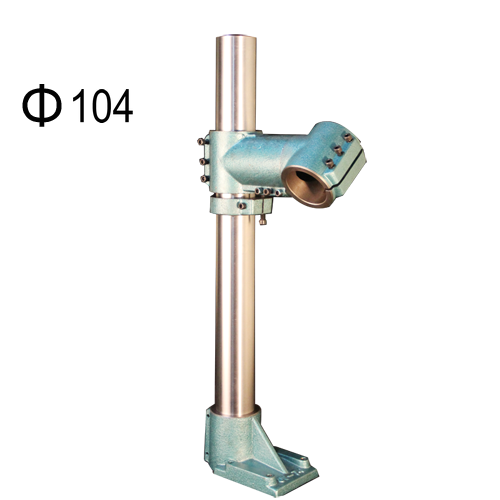

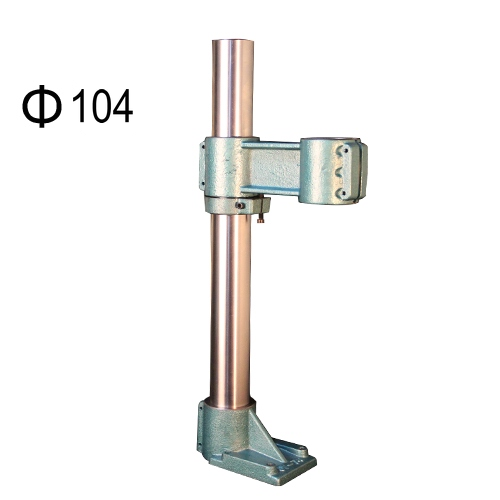

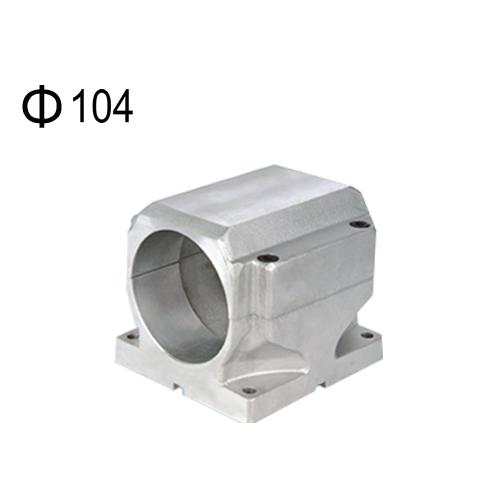

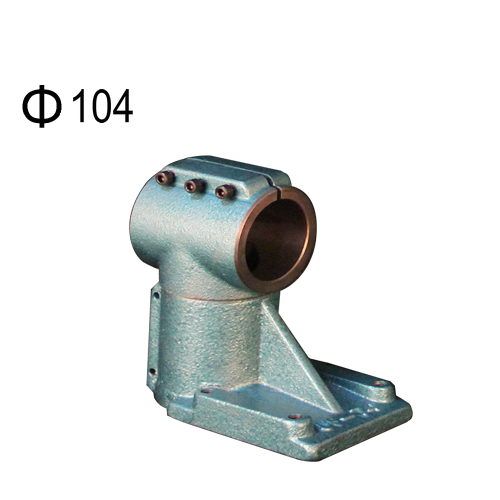

2. Desktop support (PURROS® Universal Bracket)
Such desktop support is suitable for any machining directions, which can fix the Drilling Units angle freely.

                              LC-104                                                                       US-1042

                              LC-1044                                                                       US-1045
