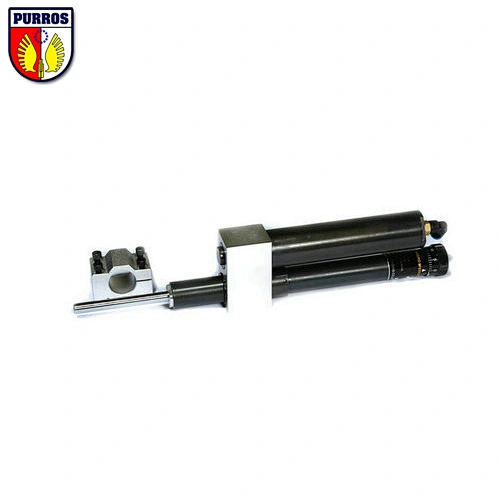

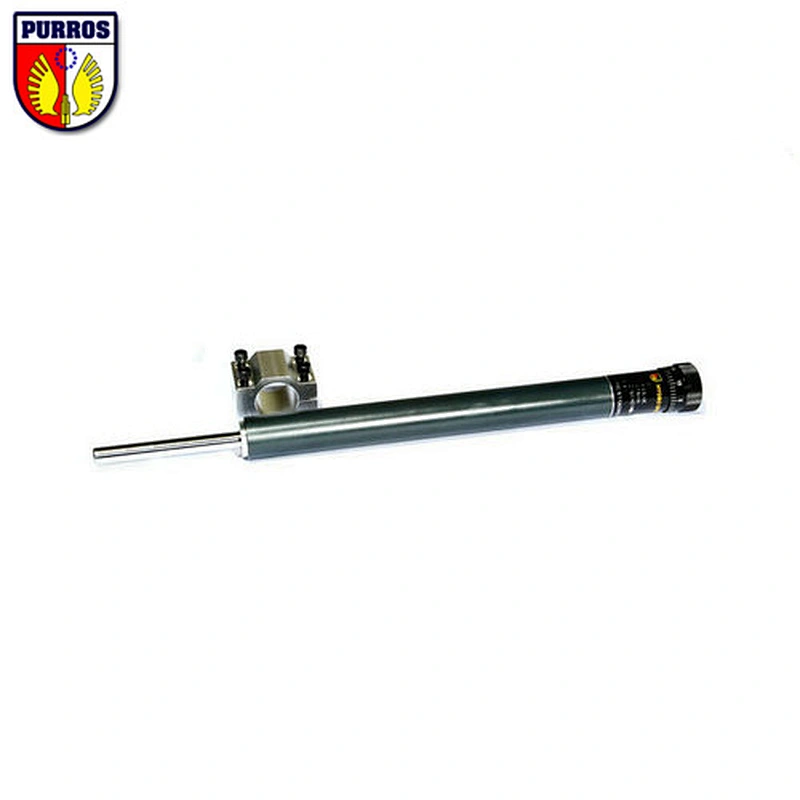

Hydro Speed Regulator (Spring Return Type)
Hydro Speed Regulator (Spring Return Type)

Hydro Speed Regulator (Spring Return Type)

Model NO.
RB-31100
Price:
US $ 268.00-268.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3 Days
Quantity:

Purros Precision Hydro Speed Regulator is a kind of hydraulic type control device of feed speed that can adjust freely feed speed of air cylinder from low speed to high speed within the range of expectation. Ways of control includes spring return type; you can make a choice according to your requirements.

When there is no load on the piston rod, it is returned automatically to its initial position by an internal spring.


SPECIFICATIONS

Model

Max stroke

mm

Load range

N

Adjusting range of speed of all kinds of driving forces.

Mm/sec

Impact energy permitted

J

Weight(Basic body)

Kg

RB-2415

15

120-1,500

F=120N     0.1-50

F=200N     0.2-20

F=500N     0.2-25

F=1,000N  0.3-40

F=1,500N  0.4-50

2.3

0.38

RB-2430

30

0.44

RB-2460

60

0.56

RB-2480

80

0.67

RB-24100

100

0.75

RB-24120

120

0.89

RB-3140

40

500-3,000

F=200N  0.1-10    F=1,500N  0.2-25F=2,300N  0.3-35   F=3,000N  0.3-35F=1,500N  0.4-50

3.5

0.95

RB-3160

60

1.13

RB-31100

100

1.35

Purros Machinery also have other models (Maximum Stroke:12-100mm, Load Range:120-3000n, Withstand Impact Energy:2.3-3.5j)

Size mark
Model

A

B

C

D

E

F

G

H

I

J

K

L

M

N

U

RB-2415

85

28

24

9

20

32

15

155

38

52

7

17

28

5

2

RB-2430

112

30

202

RB-2460

156

60

277

RB-2480

199

80

342

RB-24100

232

100

395

RB-24120

275

120

464

RB-3140

153

36

31

12

26

42

40

270

44

60

10

21

35

6

2

RB-3160

189

60

325

RB-31100

269

100

405

  • Standard or Nonstandard:Standard
  • Body Material:Steel
  • Maximum Stroke:80MM
  • Shaft Diameter:24MM
  • Model Number:RB-2480
  • Brand Name:PURROS
