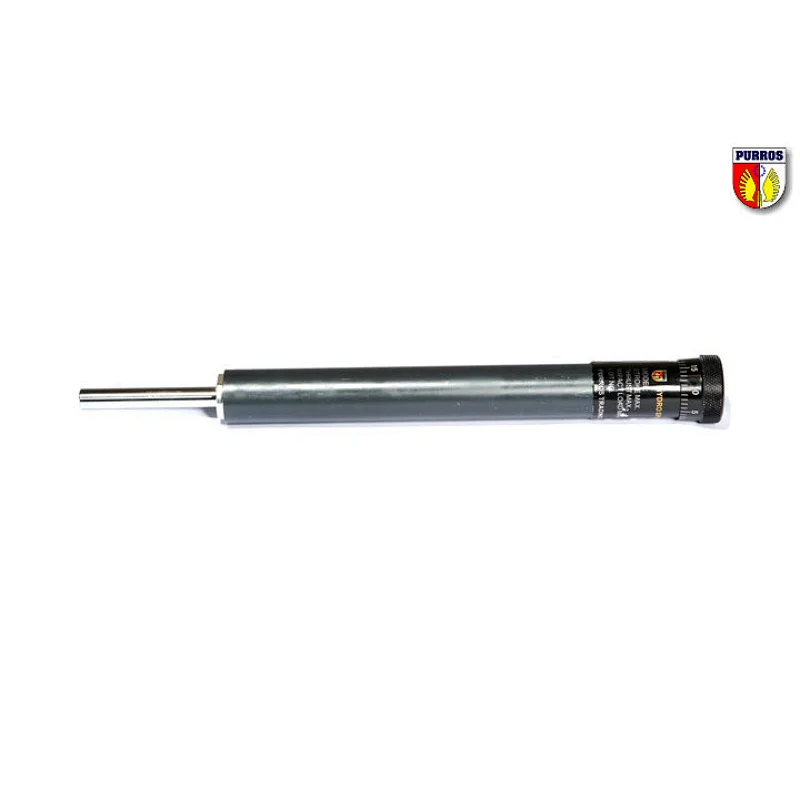

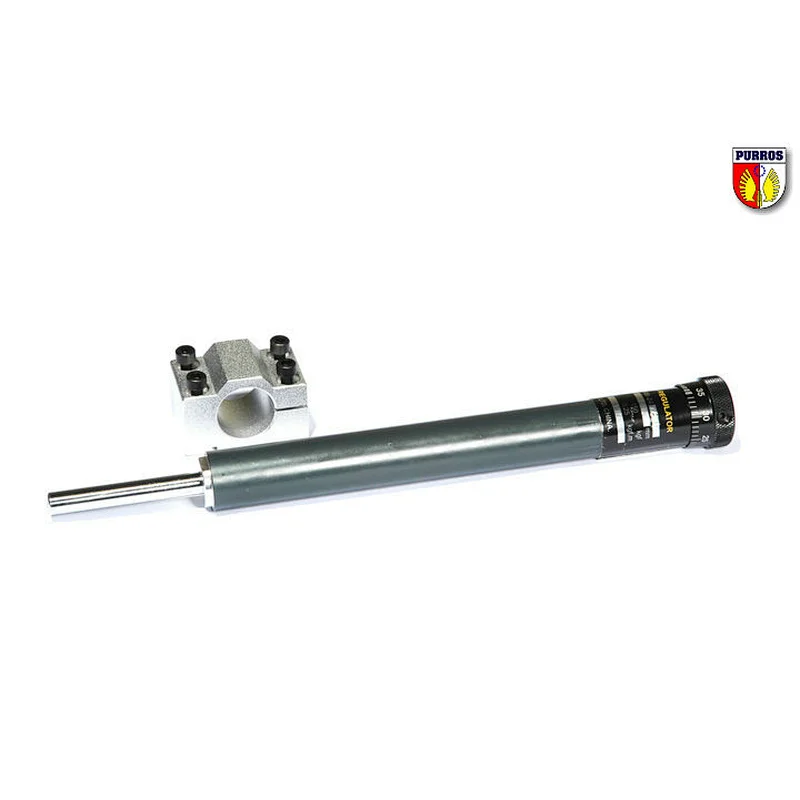

Hydro Speed Regulator (Spring Return Type)

Hydro Speed Regulator (Spring Return Type)

Hydro Speed Regulator (Spring Return Type)

Hydro Speed Regulator (Spring Return Type)

Hydro Speed Regulator (Spring Return Type)

Hydro Speed Regulator (Spring Return Type)

Model NO.: RB-2460
Price:: US $ 68.00-68.00 / piece
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 1000 piece / Month
Country of Origin: CHINA
Stock Time: 3 Days

Quantity:

Product Description
Basic Information

Purros Precision Hydro Speed Regulator is a kind of hydraulic type control device of feed speed that can adjust freely feed speed of air cylinder from low speed to high speed within the range of expectation. Ways of control includes spring return type; you can make a choice according to your requirements.

When there is no load on the piston rod, it is returned automatically to its initial position by an internal spring.

SPECIFICATIONS

Model	Max stroke mm	Load range N	Adjusting range of speed of all kinds of driving forces. Mm/sec	Impact energy permitted J	Weight(Basic body) Kg
RB-2415	15	120-1,500	F=120N 0.1-50 F=200N 0.2-20 F=500N 0.2-25 F=1,000N 0.3-40 F=1,500N 0.4-50	2.3	0.38
RB-2430	30				0.44
RB-2460	60				0.56
RB-2480	80				0.67
RB-24100	100				0.75
RB-24120	120				0.89
RB-3140	40	500-3,000	F=200N 0.1-10 F=1,500N 0.2-25F=2,300N 0.3-35 F=3,000N 0.3-35F=1,500N 0.4-50	3.5	0.95
RB-3160	60				1.13
RB-31100	100				1.35

Purros Machinery also have other models (Maximum Stroke:12-100mm, Load Range:120-3000n, Withstand Impact Energy:2.3-3.5j)

Size mark Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	U
RB-2415	85	28	24	9	20	32	15	155	38	52	7	17	28	5	2
RB-2430	112						30	202
RB-2460	156						60	277
RB-2480	199						80	342
RB-24100	232						100	395
RB-24120	275						120	464
RB-3140	153	36	31	12	26	42	40	270	44	60	10	21	35	6	2
RB-3160	189						60	325
RB-31100	269						100	405

Brand Name：PURROS
Model Number：RB-2480
Shaft Diameter：24MM
Maximum Stroke：80MM
Body Material：Steel
Standard or Nonstandard：Standard
