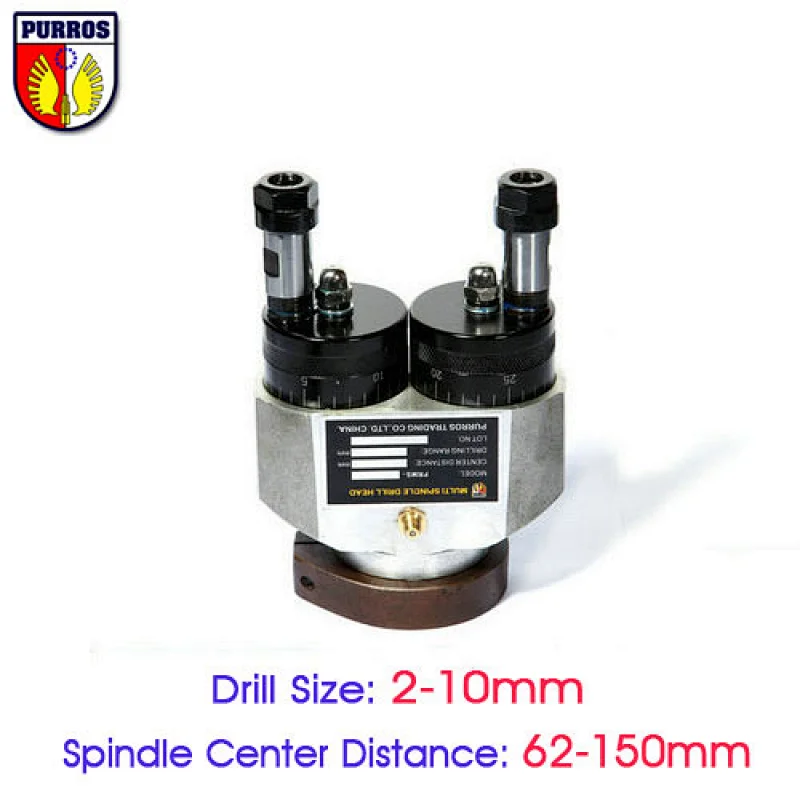

Adjustable Two Spindle Heads
- Model NO.:
- PRMS-262
- Price:
- US $ 548.00-548.00 / piece
- Delivery:
- FOB
- Minimum order quantity：：
- 1 piece
- Country of Origin:
- CHINA
- Stock Time:
- 20 Days
Purros Adjustable Multi-Spindle Heads are suitable for equally spaced hole patterns only. They are best suited for low volume work where the requirements change from time to time. They may be adapted to almost any machine. All the spindles operate in the same rotation that is also reversible.
SPECIFICATIONS
| Model | Ratio of Gear | Drilling | Tapping | Min for 2 spindle | Max for 2 spindle |
| PRMS-223 | 1 | Φ2-Φ7.5 | M2-M8 | Φ23mm | Φ91mm |
| PRMS-228 | 1 | Φ2-Φ10 | M2-M10 | Φ28mm | Φ120mm |
| PRMS-240 | 1 | Φ2-Φ10 | M2-M10 | Φ40mm | Φ130mm |
| PRMS-260 | 1 | Φ2-Φ10 | M2-M10 | Φ60mm | Φ152mm |
Inquiry Inputs from customer to understand requirement clearly:
- Material to be machined
- Size of holes
- Number of holes
- Operation to be performed
- Center distance between holes
- Fixed center distance or adjustable Center distance
- Drawing/sketch of Hole pattern
- Spindle out put rpm
- Motor HP of Machine on which head to be mounted
Connect Size
A: Spindle sleeve diameter
B: Spindle sleeve exposed length
C: Spindle rotating part exposed length
D: Spindle rotating part diameter
F: Connection type
Bench Machine Connect Size
Please send Connect size(Diameter,Height 1,Height 2,Taper shank model) and bench drilling machine & tapping machine images to our email
