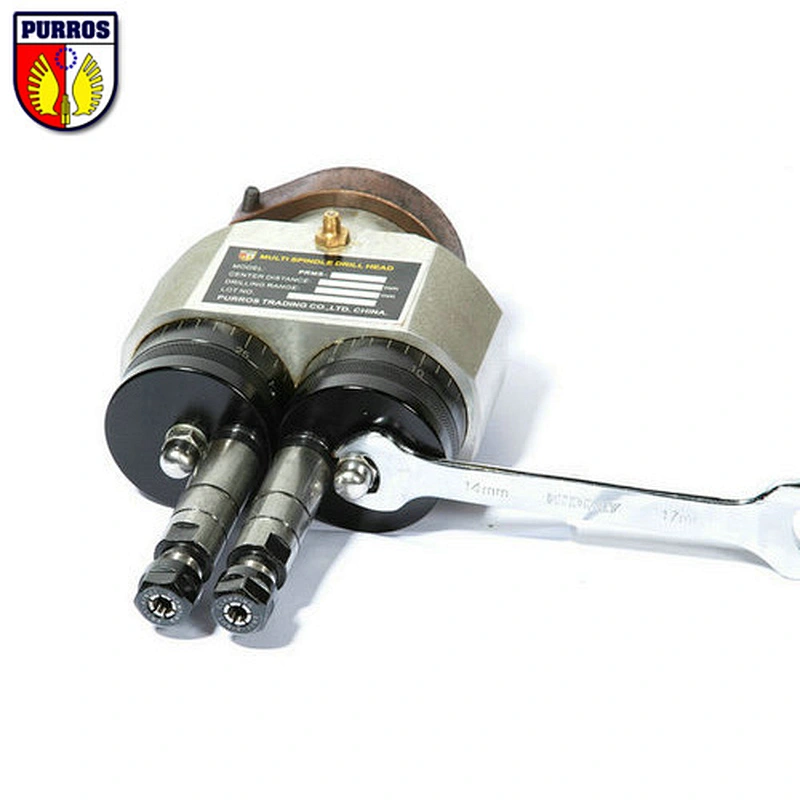

Purros Adjustable Multi-Spindle Heads are suitable for equally spaced hole patterns only. They are best suited for low volume work where the requirements change from time to time. They may be adapted to almost any machine. All the spindles operate in the same rotation that is also reversible.
SPECIFICATIONS
Model
Ratio of Gear
Drilling
Tapping
Min for 2 spindle
Max for 2 spindle
PRMS-223
1
Φ2-Φ7.5
M2-M8
Φ23mm
Φ91mm
PRMS-228
1
Φ2-Φ10
M2-M10
Φ28mm
Φ120mm
PRMS-240
1
Φ2-Φ10
M2-M10
Φ40mm
Φ130mm
PRMS-260
1
Φ2-Φ10
M2-M10
Φ60mm
Φ152mm
Inquiry Inputs from customer to understand requirement clearly:
Material to be machined
Size of holes
Number of holes
Operation to be performed
Center distance between holes
Fixed center distance or adjustable Center distance
Drawing/sketch of Hole pattern
Spindle out put rpm
Motor HP of Machine on which head to be mounted
Connect Size

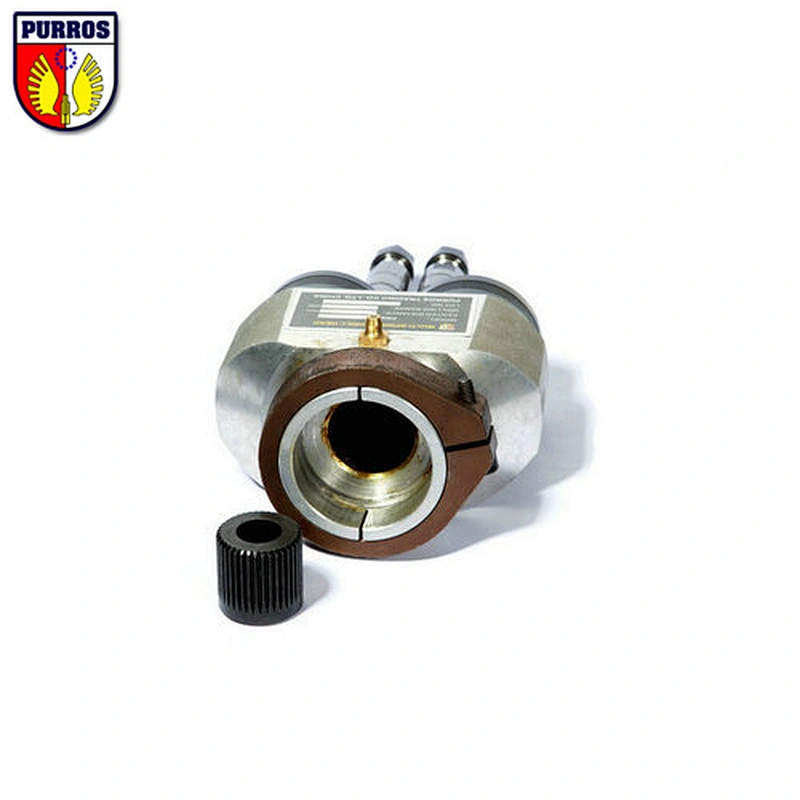

A: Spindle sleeve diameter B: Spindle sleeve exposed length C: Spindle rotating part exposed length D: Spindle rotating part diameter F: Connection type
Bench Machine Connect Size
Please send Connect size(Diameter,Height 1,Height 2,Taper shank model) and bench drilling machine & tapping machine images to our email
Multiple spindle heads can almost immediately double or triple your drilling operations by simultaneously drilling countersinking, reaming or tapping two or more holes in one operation. Multi-spindle heads have proved to be the most versatile method to drill and/or tap close spaced holes.

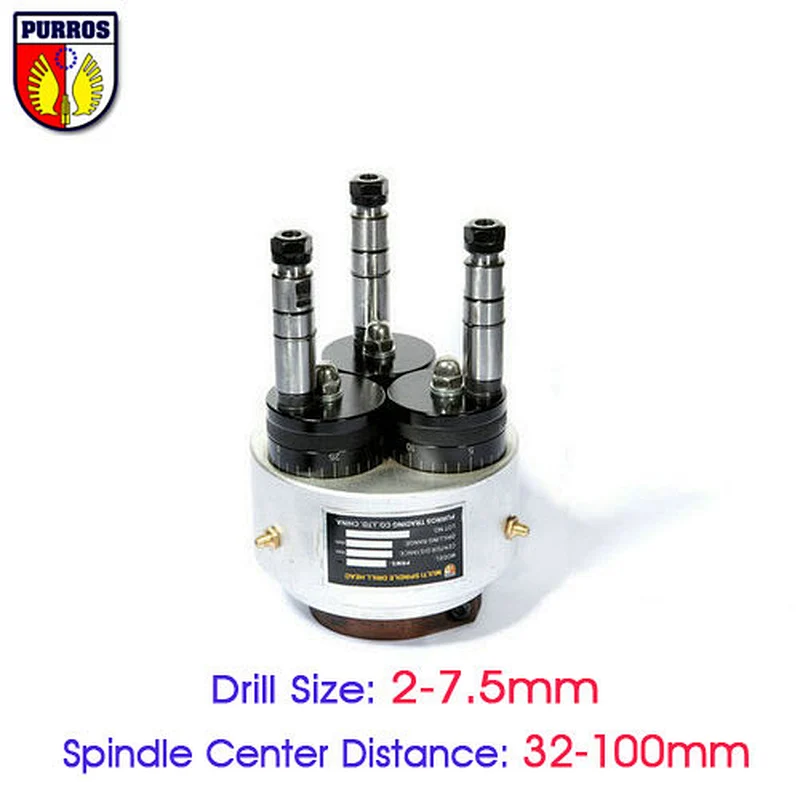

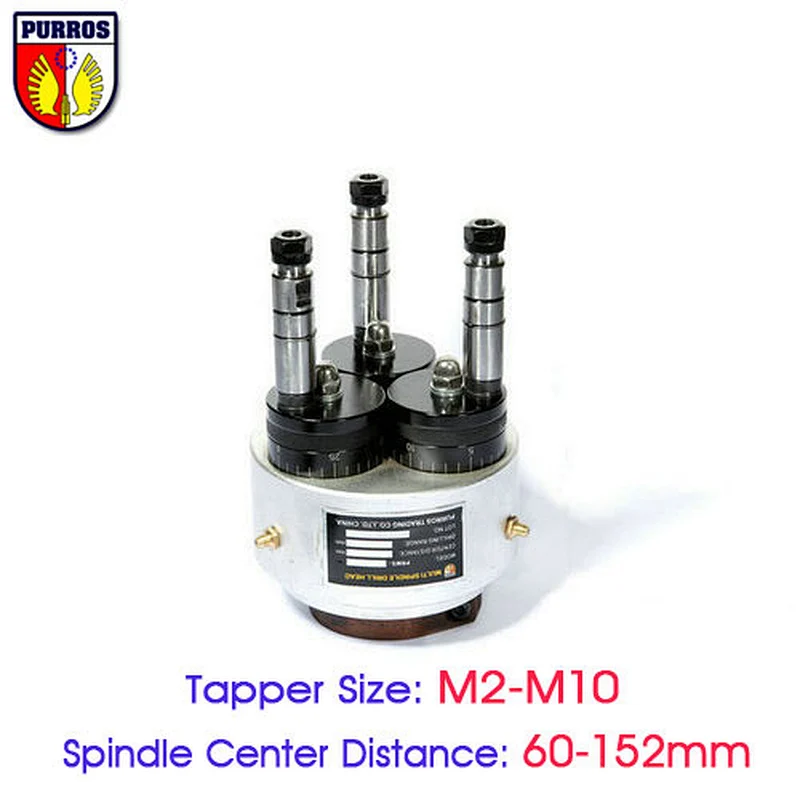

Adjustable Three Spindle Heads
PRMS-360
668.00~668.00
Multiple spindle heads can almost immediately double or triple your drilling operations by simultaneously drilling countersinking, reaming or tapping two or more holes in one operation. Multi-spindle heads have proved to be the most versatile method to drill and/or tap close spaced holes.
