Every PURROS precision spindles are built with high rigidity and quality housing material. The spindle is made by alloy steel with the process of heat-treatment and assembled with LYC bearings for long life services and high performance.
The accuracy of is restrict under 0.005mm, the machining units are available as a combination of slide table and high-performance spindles for all machining applications such as drilling, reaming, tapping, threading, boring, milling, turning, facing, deburring, chamfering, deep-hole drilling/boring, etc. for all OD and ID machining jobs. This is one of the best implementation machine tools for automation.
| Model | PRH30 | PRS30 |
| Spindle | MT3/BT30/ER32 | |
| MAX.RPM | 6000 | 2500 |
| Bearing | 6206*2 7207*3 | 6206*1 6207*1 30206*1 30207*1 |
| Power of motor | 1.5KW | |
| Holding Capacity | Milling cutter,Bit: Φ2.0-20mm Milling Cutter Plate: Φ80mm | |
- Recommended for combination of sliding table with stroke range from 100mm to680mm
- Standard 3-phase AC motor 1.5kW（Optional Or Self-matching）
- Belt driven at a fixed speed and incorporate a timing or Poly-V belt

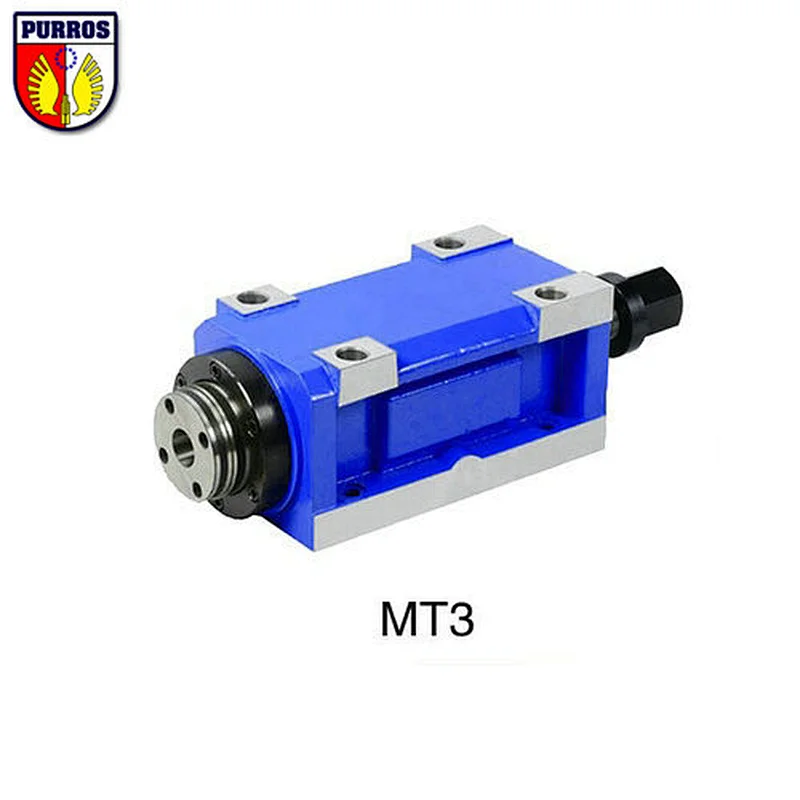

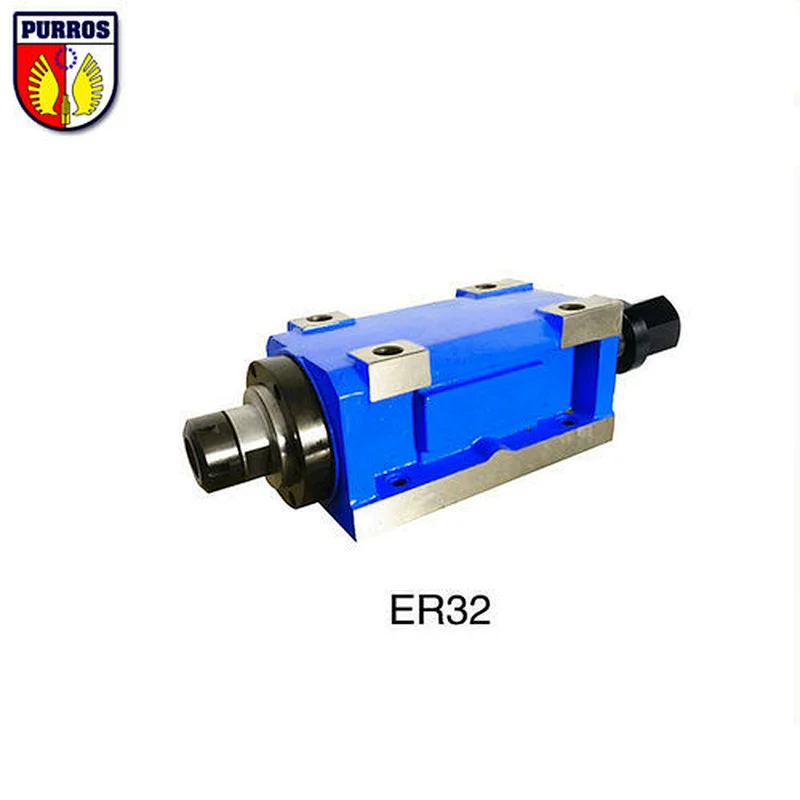

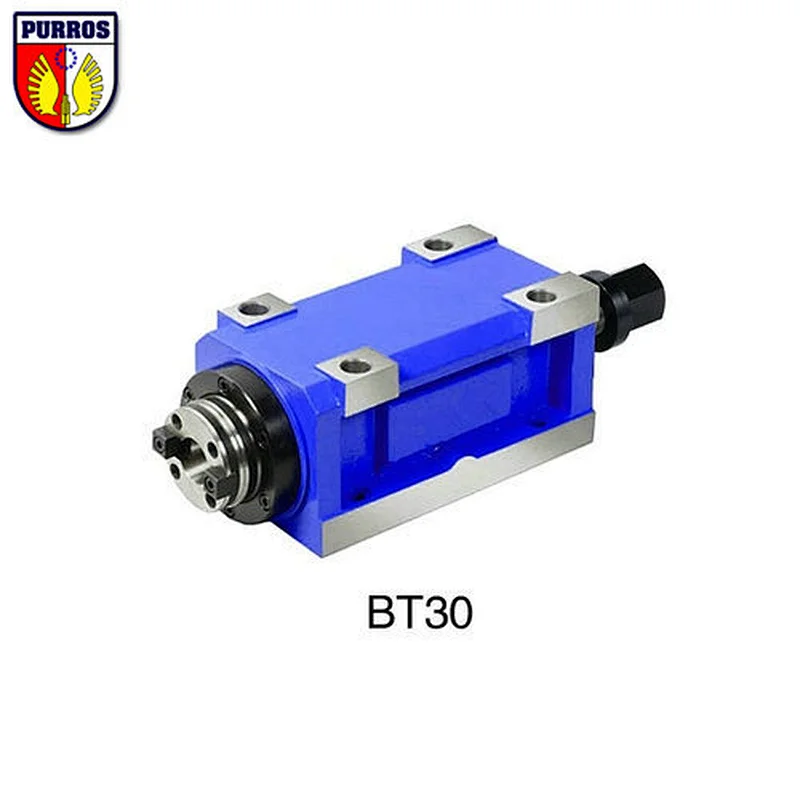

- Spindle tapper MT3 or BT30 or ER32
- Standard motor mounting direction upon specific request
- Motor protection IP 54
- Servo driven at variable speeds (Self-matching)
