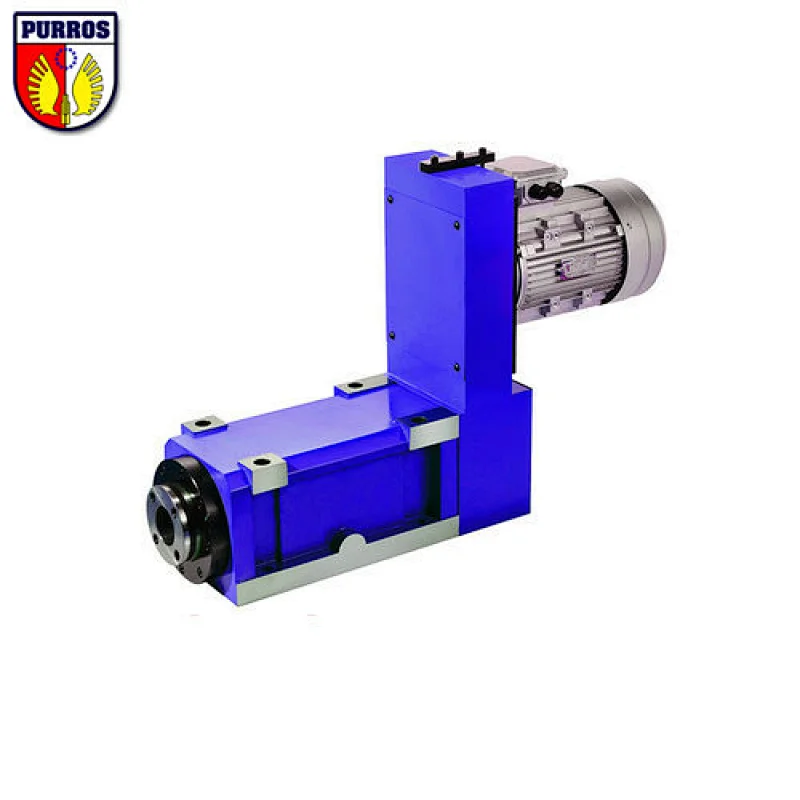

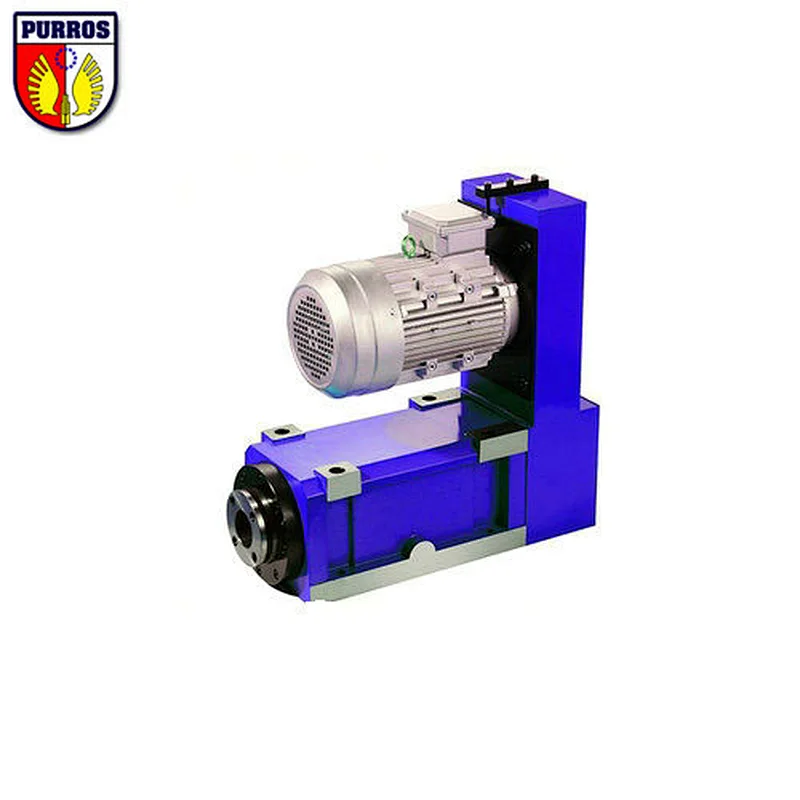

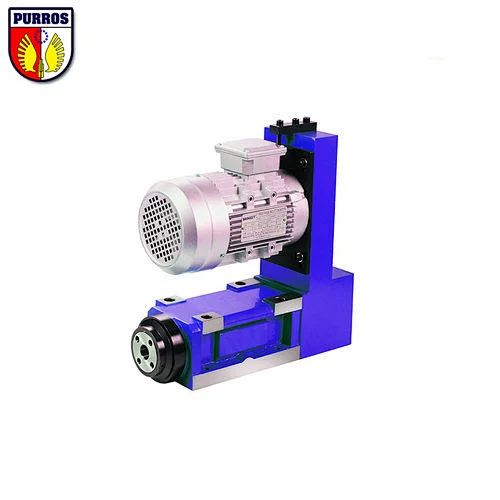

Boring/Milling Spindle Heads with Motor
- Model NO.:
- PR50+Motor
- Price:
- US $ 2350.00-2350.00 / piece
- Delivery:
- FOB
- Minimum order quantity：：
- 1 piece
- Supply Ability:
- 100 piece / Month
- Country of Origin:
- CHINA
- Stock Time:
- 20 Days
Every PURROS precision spindles are built with high rigidity and quality housing material. The spindle is made by alloy steel with the process of heat-treatment and assembled with LYC bearings for long life services and high performance.
The accuracy of is restrict under 0.005mm, the machining units are available as a combination of slide table and high-performance spindles for all machining applications such as drilling, reaming, tapping, threading, boring, milling, turning, facing, deburring, chamfering, deep-hole drilling/boring, etc. for all OD and ID machining jobs. This is one of the best implementation machine tools for automation.
| Model | PRH50 | PRS50 |
| Spindle | MT6/BT50 | |
| MAX.RPM | 2500 | 1000 |
| Bearing | 6215*2 7216*3 | 6215*1 6216*1 30215*1 30616*1 |
| Power of motor | 5.5KW | |
| Holding Capacity | Milling cutter,Bit: Φ6.0-42mm Milling Cutter Plate: Φ250mm | |
- Recommended for combination of sliding table with stroke range from 100mm to680mm
- Standard 3-phase AC motor 5.5kW is included
- Belt driven at a fixed speed and incorporate a timing or Poly-V belt
- Spindle tapper MT6/BT50
- Standard motor mounting direction upon specific request
- Motor protection IP 54
