  • Model NO.: PR50
  • Min order:1 piece
  • Accept Min order:Yes
  • Supply Ability:100 piece / Month
  • Country of Origin:CHINA
  • Stock Time:20 Days

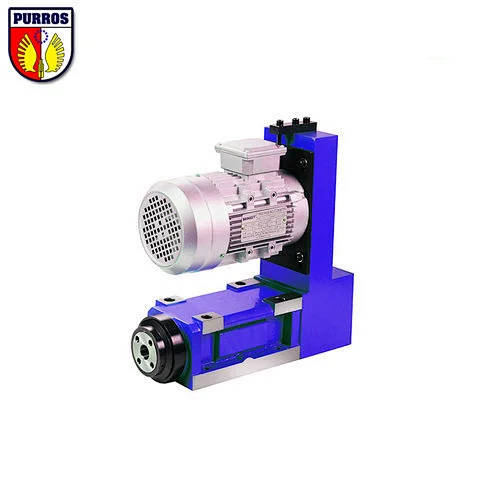

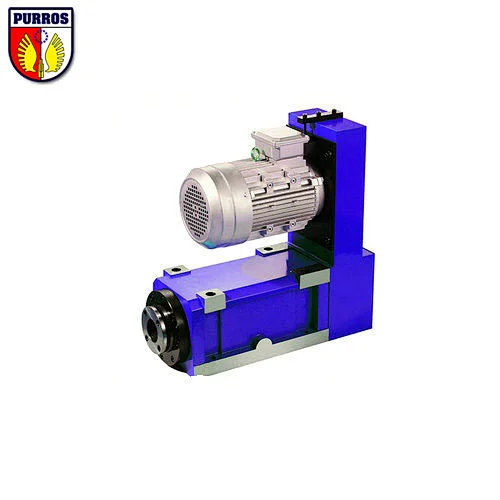

Every PURROS precision spindles are built with high rigidity and quality housing material. The spindle is made by alloy steel with the process of heat-treatment and assembled with LYC bearings for long life services and high performance.

The accuracy of is restrict under 0.005mm, the machining units are available as a combination of slide table and high-performance spindles for all machining applications such as drilling, reaming, tapping, threading, boring, milling, turning, facing, deburring, chamfering, deep-hole drilling/boring, etc. for all OD and ID machining jobs. This is one of the best implementation machine tools for automation.

Power of motor5.5KW
Holding CapacityMilling cutter,Bit: Φ6.0-42mm
Milling Cutter Plate: Φ250mm

  • Recommended for combination of sliding table with stroke range from 100mm to680mm
  • Standard 3-phase AC motor 5.5kW(Optional Or Self-matching)
  • Belt driven at a fixed speed and incorporate a timing or Poly-V belt

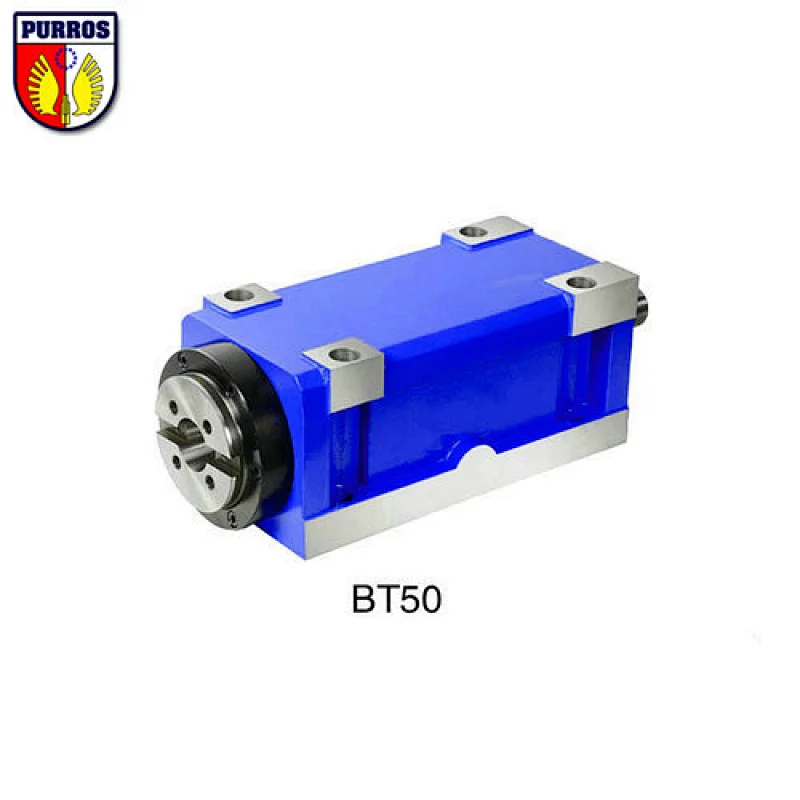

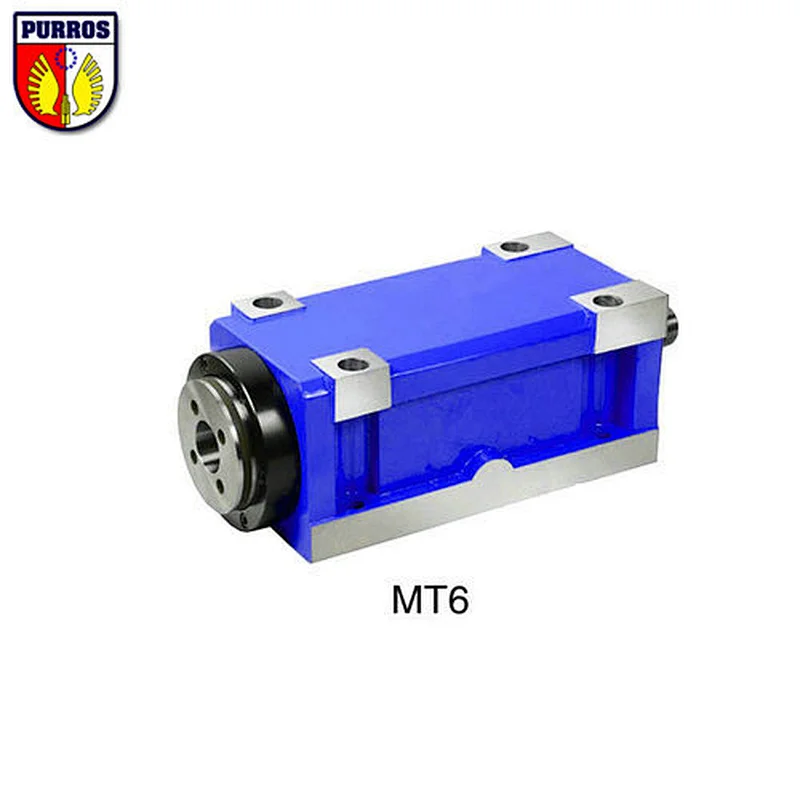

  • Spindle tapper MT6 or BT50
  • Standard motor mounting direction upon specific request
  • Motor protection IP 54
  • Servo driven at variable speeds (Self-matching)
  • Brand Name:PURROS
  • Application:Boring
