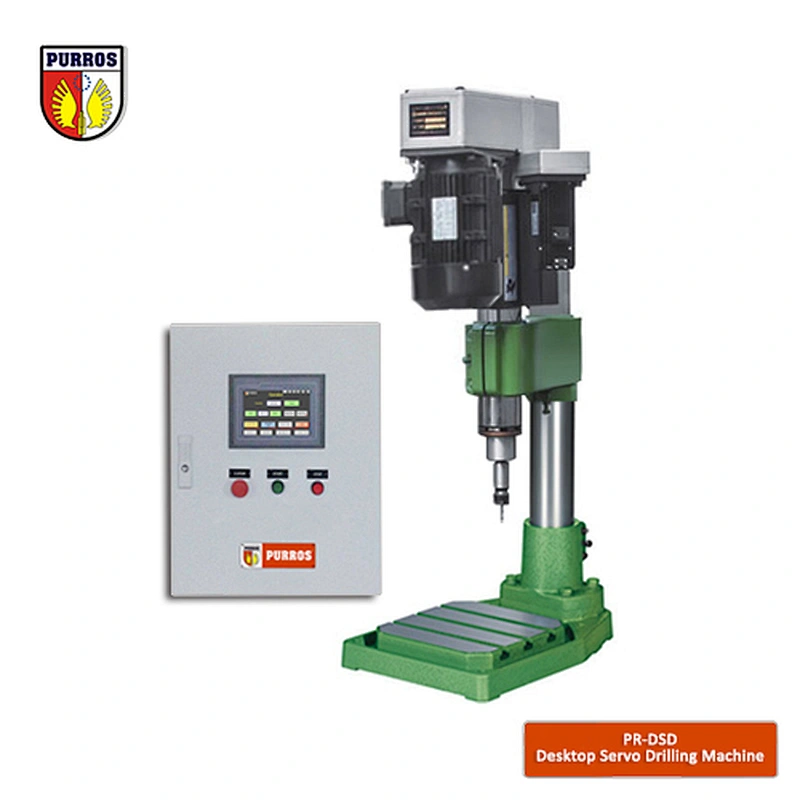

Desktop Servo Drilling Machine

Quantity:

Description:
PR-DSD Desktop Servo Drilling Machine consists of spindle motor and servo feed motor. The spindle speed is set before delivery or adjusted by belt pulley. can set the drilling depth and feed rate freely by touch screen within the program, ideal for small diameter, deep hole drilling, chamfering etc. Furthermore, as cycle time can be greatly reduced using a second home position, accuracy and efficiency of drilling dramatically improves. It is possible to attach multi spindle head & automatic fixture to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Parameter:

MODEL	PR-DSD3	PR-DSD5
Machine tool dimension	300×450×900mm	300×450×1000mm
Working table effective size	230×230mm	230×230mm
Column diameter	Φ74mm	Φ104mm
Spindle diameter	Φ50mm	Φ70mm
Spindle taper	JT6	B18
Spindle nose to table	180mm	220mm
Spindle full stroke	100mm	100mm
Spindle speed	Optional	Optional
Spindle Motor power	0.55Kw	0.75Kw
Feed Motor power	0.4Kw	0.75Kw
Drilling capacity	S45C/8.5mm	S45C/12mm
Fixture system	Optional	Optional
Control system	PLC	PLC
Control panel	Touch Screen	Touch Screen
Total weight	70Kg	100Kg
