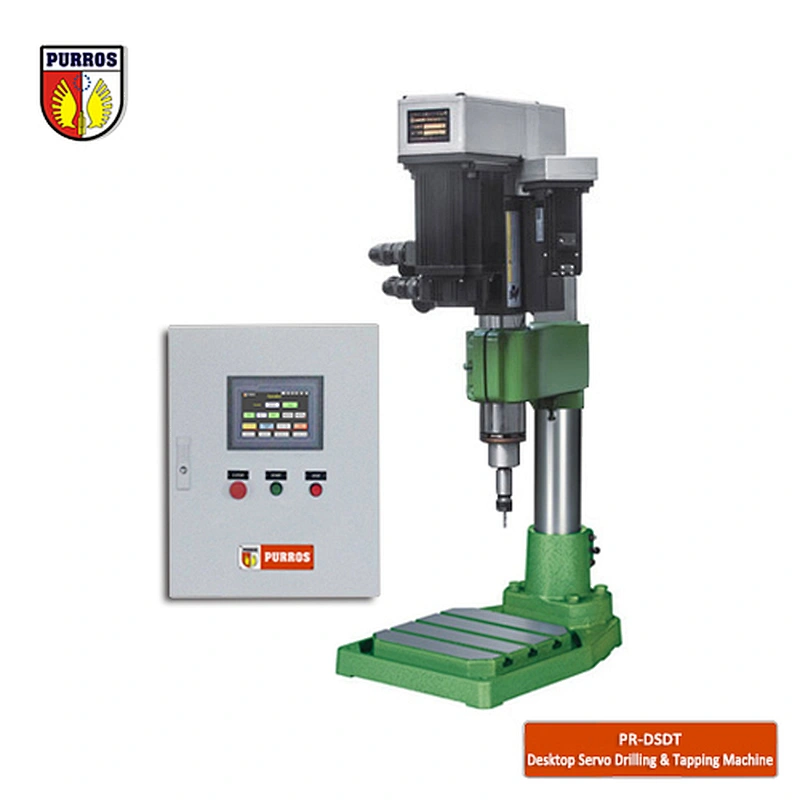

Desktop Servo Drilling & Tapping Machine

Desktop Servo Drilling & Tapping Machine

Model NO.:
PR-DSDT
Price:
US $ 3930.00-4730.00 / set
Delivery:
FOB
Min order:
1 set
Country of Origin:
China
Stock Time:
30 Days
Description:
  PR-DSDT Desktop Servo Drilling & Tapping Machine have two servo motor & servo control system can set the spindle rotation speed, depth, pitch and feed rate freely by touch screen within the program, ideal for hole drilling or tapping. Furthermore, as cycle time can be greatly reduced using a second home position, accuracy and efficiency of drilling or tapping dramatically improves. It is possible to attach multi spindle head & automatic fixture to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Parameter:
MODELPR-DSDT3PR-DSDT5
Machine tool dimension300×450×900mm300×450×1000mm
Working table effective size230×230mm230×230mm
Column diameterΦ74mmΦ104mm
Spindle diameterΦ50mmΦ70mm
Spindle taperJT6B18
Spindle nose to table180mm220mm
Spindle full stroke100mm100mm
Spindle speed0-3000rpm0-3000rpm
Spindle Motor power1.8Kw2.3Kw
Feed Motor power0.4Kw0.75Kw
Drilling capacityS45C/10mmS45C/13mm
Tapping capacityS45C/M12S45C/M16
Fixture systemOptionalOptional
Control systemPLCPLC
Control panelTouch ScreenTouch Screen
Total weight70Kg100Kg
  • Brand Name:PURROS
