Table Pneumatic Drilling Machine

Table Pneumatic Drilling Machine

Model NO.:
PR-TPD4
Price:
US $ 2748.00-3048.00 / set
Delivery:
FOB
Min order:
1 set
Country of Origin:
China
Stock Time:
30 Days
Description:

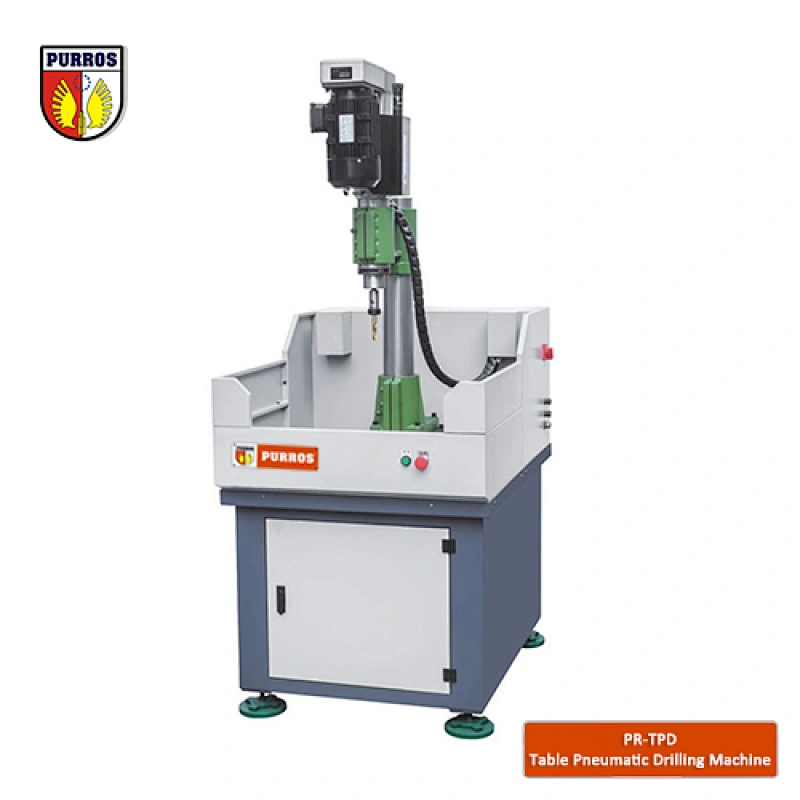

  PR-TPD4 Table Pneumatic Drilling Machine can improve the processing efficiency: fast arrival at the workpiece, adjustable drilling feed speed with hydro speed regulator, fast return. Same-day operation can be carried out by simply supplying a connection of power and air. The machine makes effective use of processing areas because it is equipped with an up-down adjustment and swing mechanism. It is possible to attach multi spindle head, automatic fixture & cooling system to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Parameter:
MODELPR-TPD4PR-TPD4L
Machine tool dimension600×750×1800mm600×750×2000mm
Working table effective size230×230mm230×230mm
Column diameterΦ92mmΦ92mm
Spindle diameterΦ50mmΦ50mm
Spindle taperJT6JT6
Spindle nose to table180mm180mm
Spindle full stroke100mm150mm
Feed stroke control40/60/80mm40/60/80/100/130mm
Spindle speedOptionalOptional
Spindle Motor power1.1Kw1.1Kw
Drilling capacityS45C/13mmS45C/13mm
Cooling systemOptionalOptional
Fixture systemOptionalOptional
Standard working pressure0.5MPa0.5MPa
Total weight180Kg190Kg
  • Brand Name:PURROS
