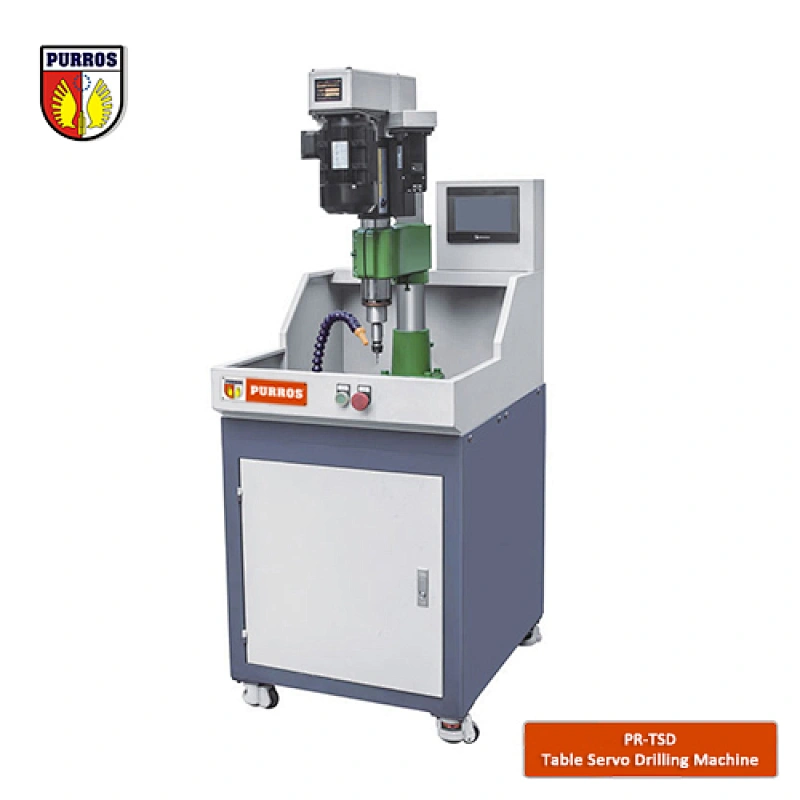

Table Servo Drilling Machine

Table Servo Drilling Machine

Model NO.:
PR-TSD
Price:
US $ 4450.00-5500.00 / set
Delivery:
FOB
Min order:
1 set
Country of Origin:
China
Stock Time:
30 Days
Description:
  PR-TSD Table Servo Drilling Machine consists of spindle motor and servo feed motor. The spindle speed is set before delivery or adjusted by belt pulley. can set the drilling depth and feed rate freely by touch screen within the program, ideal for small diameter, deep hole drilling, chamfering etc. Furthermore, as cycle time can be greatly reduced using a second home position, accuracy and efficiency of drilling dramatically improves. It is possible to attach multi spindle head, automatic fixture & cooling system to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Parameter:
MODELPR-TSD3PR-TSD5
Machine tool dimension600×750×1800mm850×1250×2000mm
Working table effective size230×230mm420×620
Column diameterΦ74mmΦ104mm
Spindle diameterΦ50mmΦ70mm
Spindle taperJT6JT6
Spindle nose to table180mm220mm
Spindle full stroke100mm100mm
Spindle speedOptionalOptional
Spindle Motor power0.55Kw0.75Kw
Feed Motor power0.4Kw0.75Kw
Drilling capacityS45C/8.5mmS45C/12mm
Cooling systemOptionalOptional
Fixture systemOptionalOptional
Control systemPLCPLC
Control panelTouch ScreenTouch Screen
Total weight180Kg300Kg
  • Brand Name:PURROS
