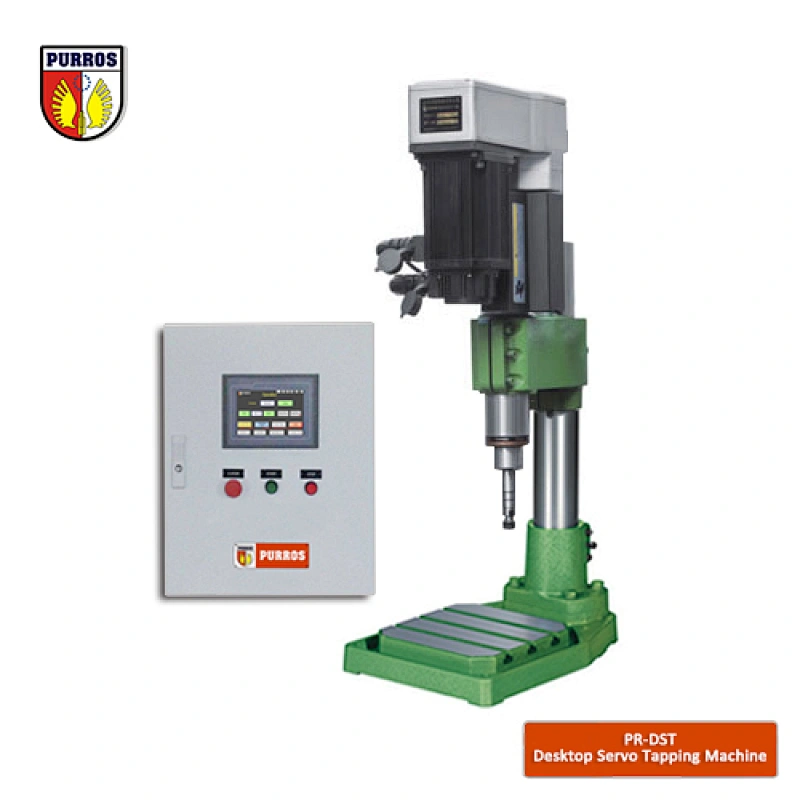

Desktop Servo Tapping Machine

Desktop Servo Tapping Machine

Model NO.:
PR-DST
Price:
US $ 2880.00-4010.00 / set
Delivery:
FOB
Min order:
1 set
Country of Origin:
China
Stock Time:
30 Days
Description:
  PR-DST Desktop Servo Tapping Machine spindle adopts servo motor, when the spindle motor rotates, it drives the feed screw rod forward and backward. It can set the spindle rotation speed, depth and feed rate freely by touch screen within the program, ideal for hole tapping. Furthermore, as cycle time can be greatly reduced using a second home position, accuracy and efficiency of tapping dramatically improves. It is possible to attach multi spindle head & automatic fixture to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Parameter:
MODELPR-DST3PR-DST5
Machine tool dimension300×450×900mm300×450×1000mm
Working table effective size230×230mm230×230mm
Column diameterΦ74mmΦ104mm
Spindle diameterΦ50mmΦ70mm
Spindle taperJT6B18
Spindle nose to table180mm220mm
Spindle full stroke80mm80mm
Spindle speed0-3000rpm0-3000rpm
Spindle Motor power1.8Kw2.3Kw
Tapping capacityS45C/M12S45C/M16
Fixture systemOptionalOptional
Control systemPLCPLC
Control panelTouch ScreenTouch Screen
Total weight70Kg100Kg
  • Brand Name:PURROS
