Table Lead Screw Tapping Machine

Table Lead Screw Tapping Machine

Model NO.:
PR-TLT
Price:
US $ 3290.00-4220.00 / set
Delivery:
FOB
Min order:
1 set
Country of Origin:
China
Stock Time:
30 Days
Description:

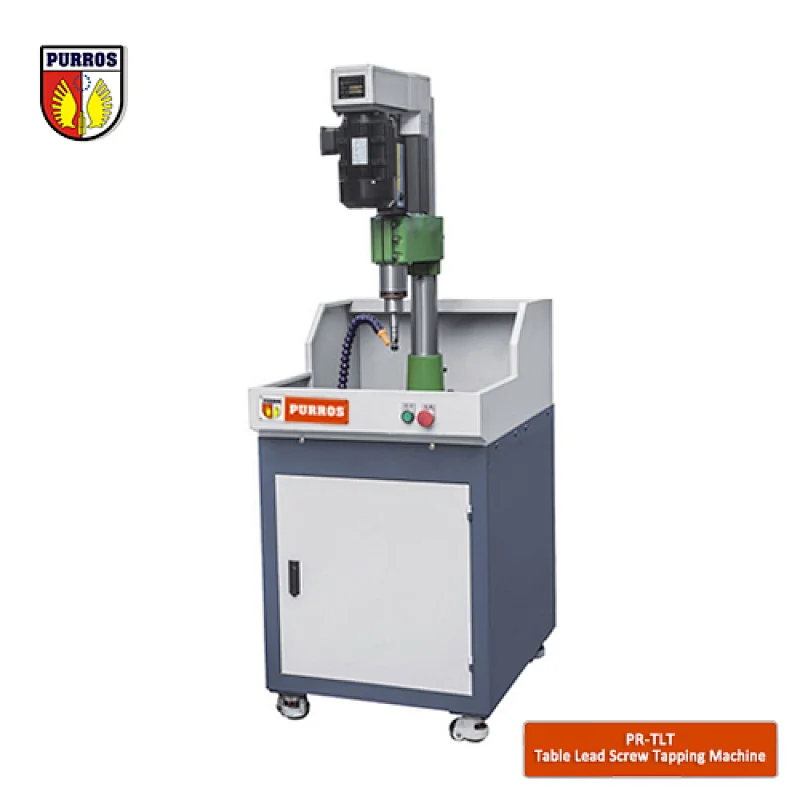

  PR-TLT Table Lead Screw Tapping Machine uses the spindle motor to drive the screw rod forward and backward through the belt pulley, To change the speed and pitch of the spindle, it needs to be adjusted by the pulley and gear. It is possible to attach multi spindle head, automatic fixture & cooling system to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Parameter:
MODELPR-TLT3PR-TLT5
Machine tool dimension600×750×1800mm850×1250×2000mm
Working table effective size230×230mm420×620
Column diameterΦ74mmΦ104mm
Spindle diameterΦ50mmΦ70mm
Spindle taperJT6B18
Spindle nose to table180mm220mm
Spindle full stroke80mm80mm
Spindle speedOptionalOptional
Spindle Motor power0.75Kw1.1Kw
Tapping capacityS45C/M12S45C/M16
Cooling systemOptionalOptional
Fixture systemOptionalOptional
Total weight180Kg300Kg
  • Brand Name:PURROS
