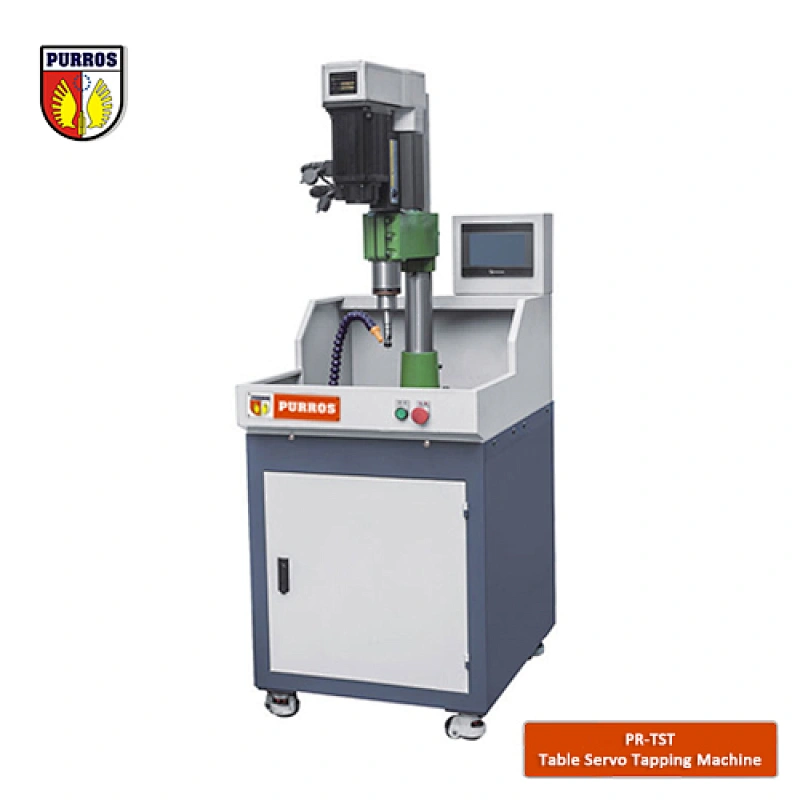

Table Servo Tapping Machine

Quantity:

Description:
PR-TST Table Servo Tapping Machine spindle adopts servo motor, when the spindle motor rotates, it drives the feed screw rod forward and backward. It can set the spindle rotation speed, depth and feed rate freely by touch screen within the program, ideal for hole tapping. Furthermore, as cycle time can be greatly reduced using a second home position, accuracy and efficiency of tapping dramatically improves. It is possible to attach multi spindle head, automatic fixture & cooling system to suit specific applications. One person at the same time can operate 2-3 machine, can improve the production efficiency.
Parameter:

MODEL	PR-TST3	PR-TST5
Machine tool dimension	600×750×1800mm	850×1250×2000mm
Working table effective size	230×230mm	420×620
Column diameter	Φ74mm	Φ104mm
Spindle diameter	Φ50mm	Φ70mm
Spindle taper	JT6	JT6
Spindle nose to table	180mm	220mm
Spindle full stroke	80mm	80mm
Tapping stroke	50mm	50mm
Spindle speed	0-3000rpm	0-3000rpm
Spindle Motor power	1.8Kw	2.3Kw
Tapping capacity	S45C/M12	S45C/M16
Cooling system	Optional	Optional
Fixture system	Optional	Optional
Control system	PLC	PLC
Control panel	Touch Screen	Touch Screen
Total weight	180Kg	300Kg
