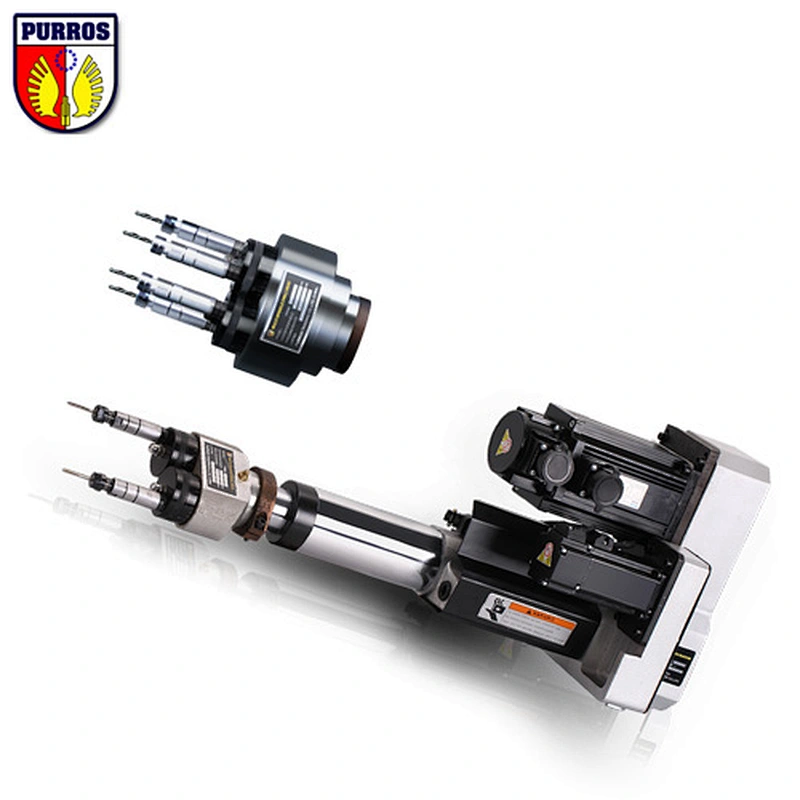

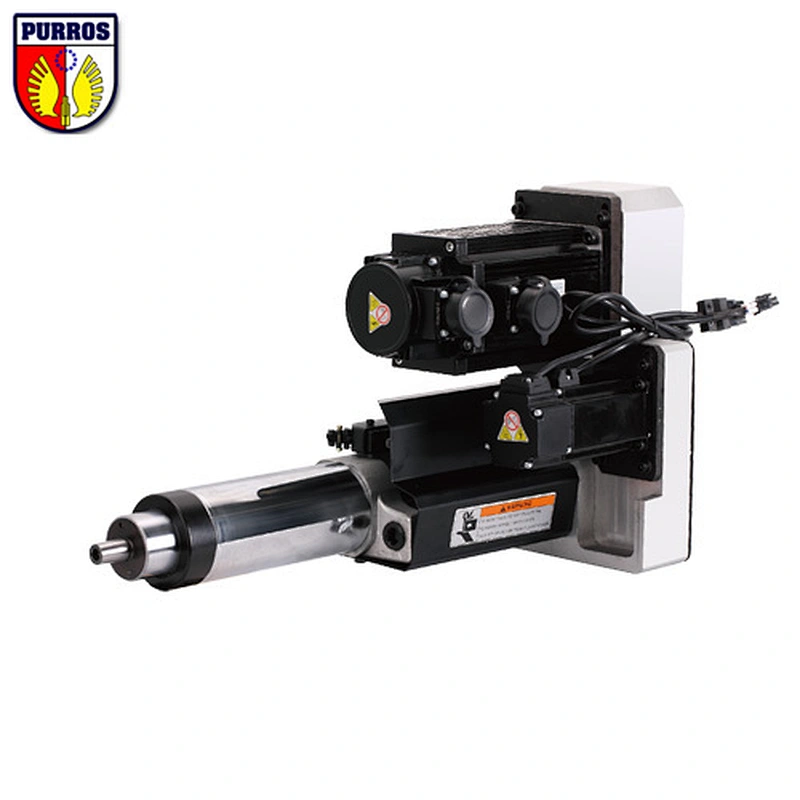

PRST5-S Servo Drilling & Tapping Unit
PRST5-S Servo Drilling & Tapping Unit
PRST5-S Servo Drilling & Tapping Unit
PRST5-S Servo Drilling & Tapping Unit
PRST5-S Servo Drilling & Tapping Unit

PRST5-S Servo Drilling & Tapping Unit

Model NO.
PRST5-S
Price:
US $ 3,900.00-3,900.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
100 piece / Month
Country of Origin:
CHINA
Stock Time:
20 Days
Quantity:


Mode: PRST5-S
Rotating speed: 0-5000 rpm
Max. Drilling capacity: 13mm(Steel)/18mm(Aluminum)
Max. Tapping capacity: M16(Steel)/M20(Aluminum)
Spindle travel: 100mm
Spindle motor power: 2.2kw
Feed motor power: 0.75kw


SPECIFICATIONS

Model

Rotating speed

Spindle
motor power

Feed
motor power

Drilling capacity

Tapping capacity

Feed screw
guide travel

Spindle travel

Steel

Aluminum

Steel

Aluminum

min-1

kw

kw

mm

mm

mm

mm

PRST3-S

0-5000

1.8

0.4

MAX.
10

MAX.
14

MAX.
M12

MAX.
M14

5

100

PRST5-S

2.3

0.75

MAX.
13

MAX.
18

MAX.
M16

MAX.
M20

Products can be equipped with Self Feeding Drill Unit

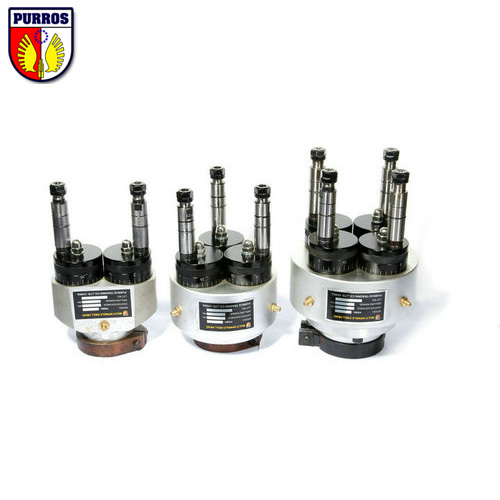

1. Multi-axis machining head (PURROS® Multiple Spindle Heads)
Multi-axis machining head can be amounted, which can achieve high efficiency drilling and meet different requirements of machining axes and axis spacing. Extensive multi-axis machining head sizes are available in PURROS®.

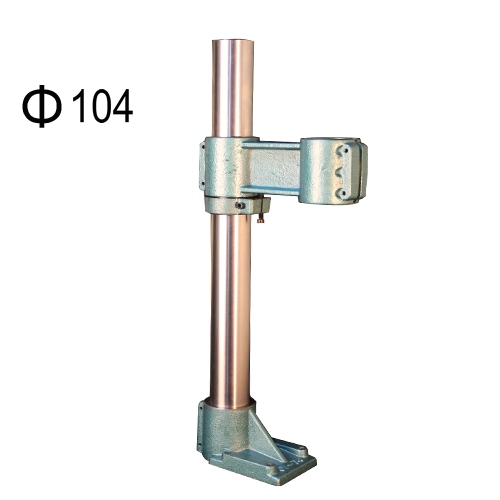

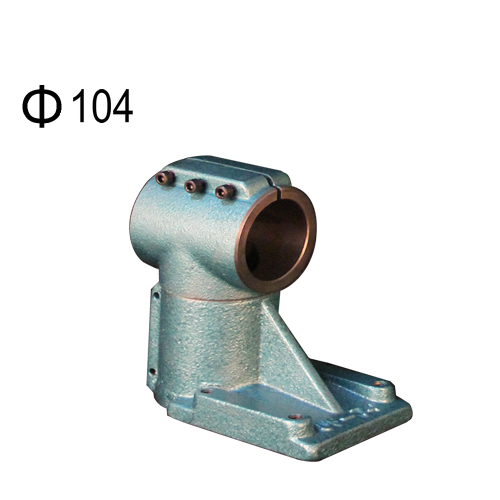

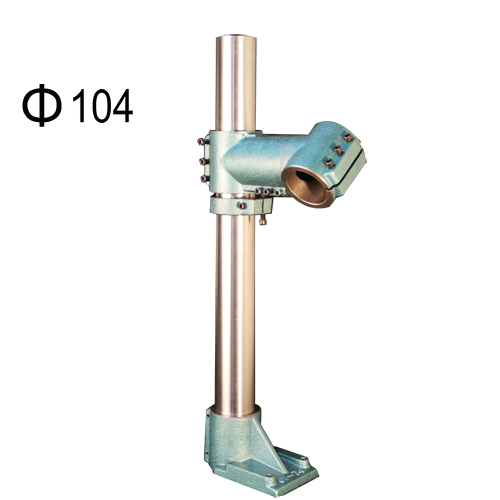

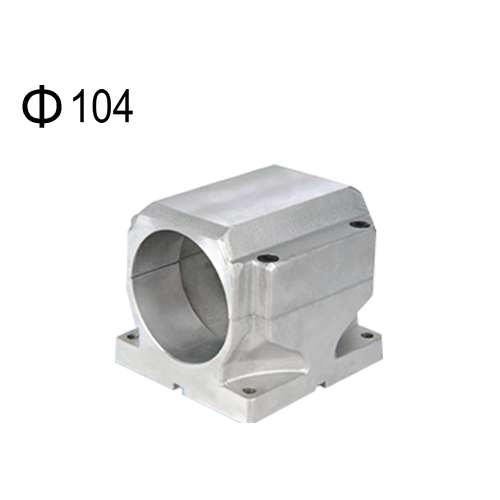

2. Desktop support (PURROS® Universal Bracket)
Such desktop support is suitable for any machining directions, which can fix the Drilling Units angle freely.

LC-104 US-1042

LC-1044 US-1045
